pico+100/WK/F/A Microsonic 120 – 1300 mm range, Ultrasonic Proximity Sensor, 90° sensing head, Push/Pull Output, IO-Link

  • pico+100/WK/F/A Microsonic 120 - 1300 mm range, Ultrasonic Proximity Sensor, 90° sensing head, Push/Pull Output, IO-Link

Product Name:
pico+100/WK/F/A Microsonic 120 – 1300 mm range, Ultrasonic Proximity Sensor, 90° sensing head, Push/Pull Output, IO-Link

Mfr. Part # pico+100/WK/F/A Categories , ,

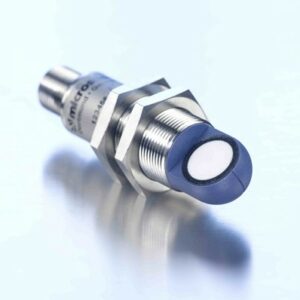

The Microsonic Cylindrical Body pico+100/WK/F/A (aka “the little guy”) is a 120 – 1300 mm range Ultrasonic Proximity Sensor, 90° sensing head with IO-Link, Push/Pull Output and M18 housing.

Highlights:

  • 90° Sensing Head, good for difficult installation flexibility
  • – 1300 mm
  • Push/Pull output with IO-Link
  • Simple programming via a IO-Link or Teach-in input on pin 5 with LinkControl
  • Resolution 0.10 mm
  • Temperature compensation
  • 10-30 VDC operating voltage
  • Easy mounting M18 nickel-plated brass housing with M12 – 5 pin plug connector. IP67 sealing

Applications: The IO-Link ready pico+100/WK/F/A sensor is a good choice for many applications, sheet stack detection in packaging machines, roll diameter monitoring in paper converting, tank liquid or pellet fill fixed level detection, bottle detection, and any application where changing targets require new switching point settings.



In Stock: 0
Factory Lead-Time: Can ship in 1 – 2 weeks
Quantity Unit Price Ext. Price
1+ US$290.35 US$290.35+
Unit Cost : US$
Extended Cost : US$290.35
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Cylindrical Body
Part Number

pico+100/F/A
Model ID Number

12801
Resolution

0.10 mm
Housing Material

Nickel-plated Brass
Weight (g)

30
Switching Output

Push-pull | 100 mA
Interface

IO-Link
Connection

M12 | 5-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Supply Voltage

+10 to 30 VDC
Sensing Distance

1300 mm
Body Size

M18

Data Sheet

Overview

  • Full details coming soon
