pico+15/WK/U Microsonic 20 – 250 mm range, Ultrasonic Distance Measuring Sensor, 90° sensing head, analogue 0-10 V output

Product Name:
pico+15/WK/U Microsonic 20 – 250 mm range, Ultrasonic Distance Measuring Sensor, 90° sensing head, analogue 0-10 V output

Mfr. Part # pico+15/WK/U Categories , ,

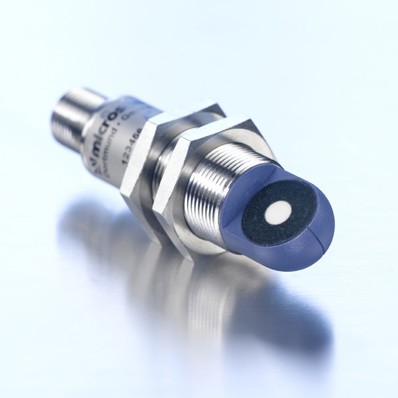

The Microsonic Cylindrical Body pico+15/WK/U (aka “the little guy”) is a 20 – 250 mm range Ultrasonic Distance Measurement Sensor, 90° sensing head with analogue 0-10 V output all packaged in an M18 housing.

Highlights:

  • 90° Sensing Head, good for difficult installation flexibility
  • 0 – 250 mm
  • Analogue 0-10 V output
  • Simple programming via a Teach-in input on pin 5 using LCA-2 with LinkControl
  • Resolution of 0.069 mm to 0.10 mm, depending on the analogue window
  • Temperature compensation
  • 15-30 VDC operating voltage
  • Easy mounting M18 nickel-plated brass housing with M12 – 5 pin plug connector. IP67 sealing

Applications: The compact pico+15/WK/U sensor with a 90° sensing head is ideal for “hard to access” applications, including level measurement, sheet stack detection in packaging machines, roll diameter monitoring in paper converting, tank liquid or pellet fill rate measurement, flow control, and any application involving continuously varying target sensing.

In Stock: 0
Factory Lead-Time: Can ship in 1 – 2 weeks
Quantity Unit Price Ext. Price
1+ US$360.98 US$360.98+
Unit Cost : US$
Extended Cost : US$360.98
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Cylindrical Body
Part Number

pico+15/WK/U
Resolution

0.069 mm
Housing Material

Nickel-plated Brass
Weight (g)

30
Switching Output

Analog 0-10 V
Interface

Teach-in
Connection

M12 | 5-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Sensing Distance

250 mm
Body Size

M18

Data Sheet

Overview

  • Full details coming soon
