pico+100/WK/I Microsonic 120 – 1300 mm range, Ultrasonic Distance Measuring Sensor, 90° sensing head, analogue 4-20 mA output

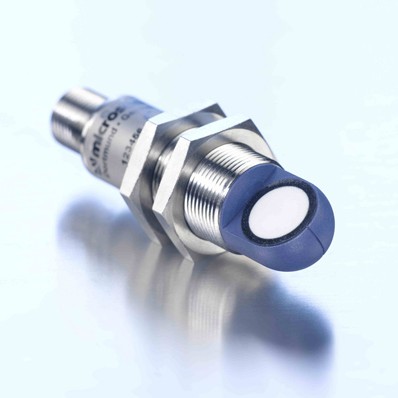

The Microsonic Cylindrical Body pico+100/WK/I (aka “the little guy”) is a 120 – 1300 mm range Ultrasonic Distance Measurement Sensor, 90° sensing head with analogue 4-20 mA output all packaged in an M18 housing.

Highlights:

• 90° Sensing Head, good for difficult installation flexibility
• Sensing range: 120 – 1300 mm
• Analogue 4-20 mA output
• Simple programming via a Teach-in input on pin 5 using LCA-2 with LinkControl
• Resolution of 0.069 mm to 0.10 mm, depending on the analogue window
• Temperature compensation
• 10-30 VDC operating voltage
• Easy mounting M18 nickel-plated brass housing with M12 – 5 pin plug connector. IP67 sealing

Applications: The compact pico+100/WK/I sensor with a 90° sensing head is ideal for “hard to access” applications, including level measurement, sheet stack detection in packaging machines, roll diameter monitoring in paper converting, tank liquid or pellet fill rate measurement, flow control, and any application involving continuously varying target sensing.
