Mfr. Part # pico+100/U Categories , ,

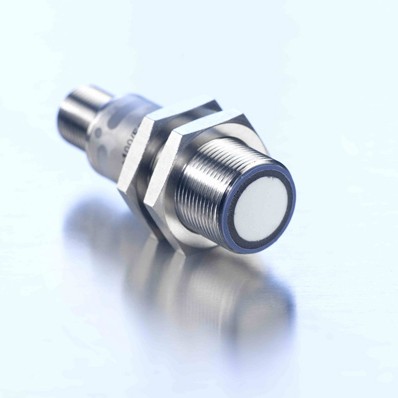

The Microsonic Cylindrical Body pico+100/U “the little guy” is a 120 – 1300 mm range Ultrasonic Distance Measurement Sensor, axial sensing head, analogue 0-10 V output, and M18 housing.

Features include:

  • Sensing range 120 – 1300 mm
  • Analogue 0 – 10 V output
  • Programming by Teach-in via com input on pin 5
  • Resolution of 0.069 mm to 0.38 mm, depending on the analogue window
  • Temperature compensation
  • Operating voltage 15 – 30 VDC
  • Nickel-plated brass M18 housing with IP67 sealing and M12 – 5 pin connection
  • Also available with a 90° angled sensing head
In Stock: 0
Factory Lead-Time: Can Ship in 2 – 3 weeks
Quantity Unit Price Ext. Price
1+ US$320.73 US$320.73+
Unit Cost : US$
Extended Cost : US$320.73
Add to Quote

Specifications

Product Type

Sensors

Brand

Microsonic

Family

Cylindrical Body

Part Number

pico+100/U

Resolution

0.069 mm

Housing Material

Nickel-plated Brass

Switching Output

Analog 0-10 V

Interface

Teach-in

Connection

M12 | 5-pin

IP Rating

IP67

Operating Temperature Range

-25 to +70 °C

Sensing Distance

1300 mm

Body Size

M18
