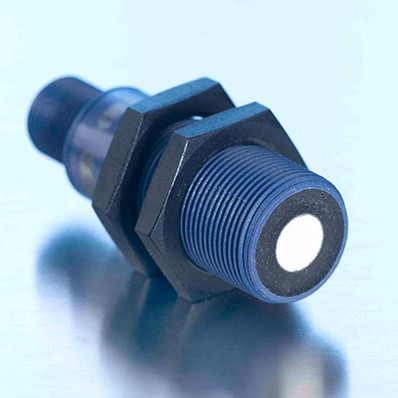

nero-15/CI Microsonic 20 – 250 mm range Ultrasonic Distance Measuring Sensor, analogue 4-20 mA output, M18 plastic body

The Microsonic nero-15/CI is a 20 – 250 mm range Ultrasonic distance measurement sensor, with analogue 4-20 mA output.

Highlights:

• Sensing range: 20 – 250 mm
• Analogue 4-20 mA output
• Teach-in input
• Resolution 0.056 to 0.297 mm
• Temperature compensation
• 10-30 VDC operating voltage
• Easy mounting M18 PBT plastic housing with M12 – 4 pin plug, IP67 sealing

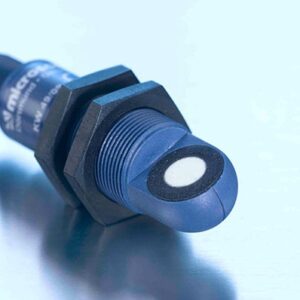

For space limited sideways sensing applications: The nero-15/CI is also available with a 90° angled sensing head

Applications: The tough nero-15/CI sensor is a good choice for many industrial applications requiring non-contact measurement of the target or process flow monitoring. Some uses include: sheet stack detection in packaging machines, roll diameter monitoring in paper converting, tank liquid or pellet fill fixed level detection, bottle detection, fork-lift unloading and any application where simple, reliable, and compact sensing is required.
