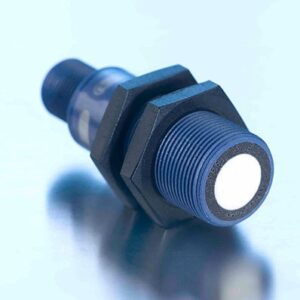

nero-100/WK/CU Microsonic 120 – 1300 mm range Ultrasonic Distance Measuring Sensor, 90° Sensing Head, analogue 0-10 V output, M18

Product Name:
nero-100/WK/CU Microsonic 120 – 1300 mm range Ultrasonic Distance Measuring Sensor, 90° Sensing Head, analogue 0-10 V output, M18

Mfr. Part # nero-100/WK/CU Categories , ,

The Microsonic nero-100/WK/CU is a 120 – 1300 mm range Ultrasonic distance measurement sensor with a 90° side sensing head, and analogue 0-10 V output.

Features include:

  • 90° side sensing head
  • Sensing range 120 – 1300 mm
  • Analogue 0-10 V output
  • Programming by Teach-in control input
  • Resolution of 0.056 mm to 0.691 mm, depends on the analogue window
  • Temperature compensation
  • Operating voltage 10 – 30 VDC
  • PBT plastic M18 housing with IP67 sealing and M12 – 4 pin plug

For space limited compact sensing applications: The nero-100/WK/CU is also available with a standard straight M18 sensing head

Applications: The tough nero-100/WK/CU sensor is a good choice for many industrial applications requiring non-contact measurement of the target or process flow monitoring. Some uses include: sheet stack detection in packaging machines, roll diameter monitoring in paper converting, tank liquid or pellet fill fixed level detection, bottle detection, fork-lift unloading and any application where simple, reliable, and compact sensing is required.



In Stock: 0
Factory Lead-Time: Please request a quotation
Quantity Unit Price Ext. Price
1+ US$0.00 US$0.00+
Unit Cost : US$
Extended Cost : US$0
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Cylindrical Body
Part Number

nero-100/WK/CU
Resolution

0.056 mm
Housing Material

PBT
Switching Output

Analog 0-10 V
Interface

Teach-in
Connection

M12 | 4-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Sensing Distance

1300 mm
Body Size

M18

Data Sheet

Overview

  • Full details coming soon

Certifications
