nano-24/CU Microsonic 40 – 350 mm range, Ultrasonic Distance Measuring Sensor, analogue 0-10 V output

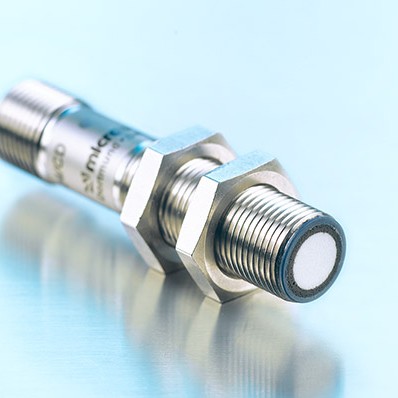

The Microsonic Cylindrical Body nano-24/CU is a 40 – 350 mm range Ultrasonic Distance Measurement Sensor, with analogue 0-10 V output.

At 60 mm long including the plug, this sensor is the smallest ultrasonic sensor with an analogue output packaged in an M12 threaded sleeve on the market.

Highlights:

• Ultra-short sensor body length of 60 mm
• Sensing range: 40 – 350 mm
• Analogue 0 – 10 V output
• Simple programming via a Teach-in input on pin 2 using LCA-2 with LinkControl
• Resolution of 0.069 mm to 0.10 mm, depending on the analogue window
• Temperature compensation
• 15-30 VDC operating voltage
• Nickel-plated brass IP67 housing with M12 – 4 pin plug connector

Applications: The compact nano-24/CU sensor is a good choice for many non-contact sensing applications, including level measurement, sheet stack detection in packaging machines, roll diameter monitoring in paper converting, tank liquid or pellet fill rate measurement, flow control, and any application involving continuously varying target sensing.
