nano-15/CF Microsonic 20 – 250 mm range Ultrasonic Proximity Sensor, Push/Pull Output, IO-Link

Product Name:
nano-15/CF Microsonic 20 – 250 mm range Ultrasonic Proximity Sensor, Push/Pull Output, IO-Link

Mfr. Part # nano-15/CF Categories , ,

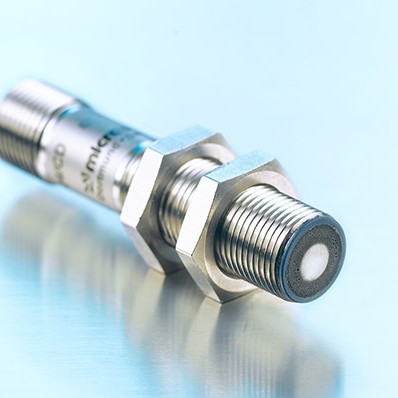

The Microsonic Cylindrical Body nano-15/CF is a 20 – 250 mm range Ultrasonic Proximity Sensor, with 1 x push-pull output and IO-Link interface.

The NEW nano-15/CF replaces the discontinued nano-15/CD and nano-15/CE sensors. It’s a direct replacement in both function and body size while adding IO-Link interface.

Highlights:

  • 0 – 250 mm
  • Push/Pull output with IO-Link
  • Simple programming via a IO-Link or Teach-in input on pin 2 with LinkControl
  • Resolution 0.10 mm
  • Temperature compensation
  • 10-30 VDC operating voltage
  • Nickel-plated brass IP67 housing with M12 – 4 pin plug connector

Applications: The IO-Link ready nano-15/CF sensor is a good choice for many applications such as; sheet stack detection in packaging machines, roll diameter monitoring in paper converting, tank liquid or pellet fill fixed level detection, bottle detection, and any application where changing targets require new switching point settings.



In Stock: 0
Factory Lead-Time: Can ship in 1 – 2 weeks
Quantity Unit Price Ext. Price
1+ US$267.39 US$267.39+
Unit Cost : US$
Extended Cost : US$267.39
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Cylindrical Body
Part Number

nano-15/CF
Model ID Number

34020
Resolution

0.10 mm
Housing Material

Nickel-plated Brass
Weight (g)

15
Switching Output

PNP NO/NC | 200 mA
Interface

IO-Link
Connection

M12 | 4-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Supply Voltage

+10 to 30 VDC
Sensing Distance

250 mm
Body Size

M12

Data Sheet

Overview

  • Full details coming soon

Certifications
