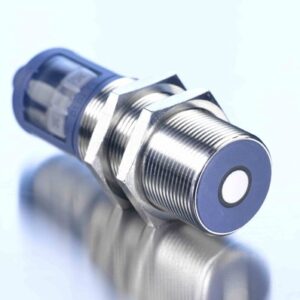

mic+35/IU/TC Microsonic 65 – 600 mm range, Ultrasonic Distance Measurement Sensor, digital display, 4-20 mA and 0-10 V outputs

The Microsonic mic+35/IU/TC is a 65 – 600 mm range Ultrasonic Distance Measurement Sensor with a digital display, analogue 4-20 mA and 0-10V outputs in an M30 body.

Highlights:

• Sensing range: 65 – 600 mm
• Analogue 4-20 mA and 0-10V outputs
• Simple programming via a Teach-in buttons T1 and T2 and the digital display
• Resolution of 0.025 mm to 0.17 mm, depending on the analogue window
• Temperature compensation
• 9–30 VDC operating voltage
• Easy mounting M30 nickel-plated brass IP67 housing with M12 – 5 pin plug connector

Applications for mic+ ultrasonic sensors: The mic+ series are ideal sensors for conveyor systems, packaging machines, fill-level check, wafer board detection, labelling machines, sorting systems, sheet loop control, small component detection, part bowl feeders, or any sensing application that requires accurate, non-contact target detection.
