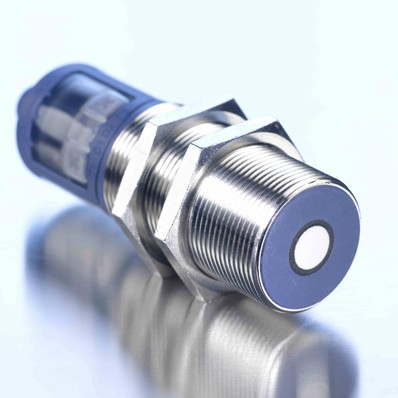

mic+35/D/TC Microsonic Ultrasonic Proximity Sensor, 65 – 600 mm range, digital display, PNP NO/NC output

The Microsonic Cylindrical M30 Body mic+35/D/TC is a 65 – 600 mm range Ultrasonic Proximity Sensor, digital display, PNP NO/NC output.

Highlights:

• Sensing range: 65 – 600 mm
• 1 x PNP NO/NC switching output
• Operating modes: proximity switch, reflective barrier and window
• Programming by Teach-in buttons T1 and T2, LinkControl configurable
• Resolution of 0.025 mm
• Temperature compensation
• 9–30 VDC operating voltage
• Easy mounting M30 nickel-brass IP67 housing with M12 – 5 pin plug connector.

Typical applications for mic+ ultrasonic sensors:

• Distance or presence sensing of objects on conveyor systems
• Part counting and positioning in packaging or assembly lines
• Label or web monitoring in paper converting and material handling
• Bowl feeder control and detection of small parts or components
• Quality control, sorting, and loop-control of sheets or foil materials
• Any sensing application that requires accurate, non-contact target detection

Ideal For: Machine builders, OEMs, MRO, and system integrators who require a compact, high-precision ultrasonic sensor for reliable object detection, distance monitoring or presence control in demanding automation systems.
