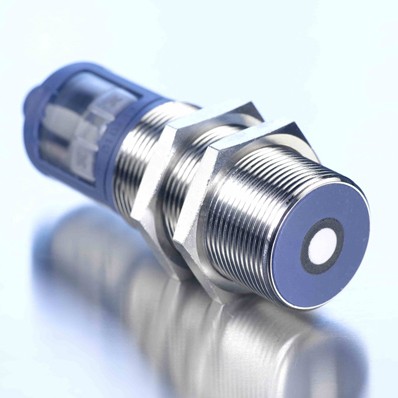

mic+25/F/TC Microsonic Ultrasonic Proximity Sensor, 30 – 350 mm range, Push-Pull NO/NC output, IO-Link

Product Name:
mic+25/F/TC Microsonic Ultrasonic Proximity Sensor, 30 – 350 mm range, Push-Pull NO/NC output, IO-Link

Mfr. Part # mic+25/F/TC Categories , ,

The Microsonic Cylindrical M30 Body mic+25/F/TC is a 30 – 350 mm range Ultrasonic Proximity Sensor, digital display, 1 x Push/Pull output, IO-Link enabled, axial sensing

Highlights:

  • IO-Link interface ready
  • Sensing range 30 – 350 mm
  • Digital output: 1 x Push-Pull NO/NC
  • Resolution of 0.10 mm
  • Smart Sensor Profiles and LinkControl
  • Programming by Teach-in push-buttons, IO-Link
  • Operating voltage 9 – 30 VDC
  • Easy mounting M30 nickel-brass IP67 housing with M12 – 5 pin plug connector.

Applications for mic+ ultrasonic sensors: The mic+ series are ideal sensors for conveyor systems, packaging machines, fill-level check, wafer board detection, labelling machines, sorting systems, sheet loop control, small component detection, part bowl feeders, or any sensing application that requires accurate, non-contact target detection.

In Stock: 0
Factory Lead-Time: Can Ship in 1 – 2 weeks
Quantity Unit Price Ext. Price
1+ US$292.08 US$292.08+
Unit Cost : US$
Extended Cost : US$292.08
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Cylindrical Body
Part Number

mic+25/F/TC
Model ID Number

22180
Resolution

0.10 mm
Housing Material

Nickel-plated Brass
Weight (g)

150
Switching Output

Push-pull | 100 mA | NO/NC
Interface

IO-Link
Connection

M12 | 5-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Supply Voltage

+10 to 30 VDC
Sensing Distance

350 mm
Body Size

M30

Data Sheet

Overview

  • Full details coming soon

Certifications
