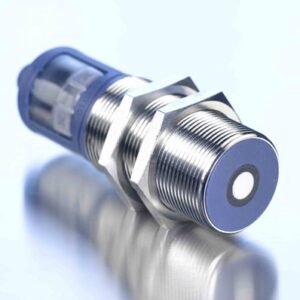

mic+25/EE/TC Microsonic Ultrasonic Proximity Sensor, 30 – 350 mm range, digital display, 2 x NPN NO/NC output

Product Name:
mic+25/EE/TC Microsonic Ultrasonic Proximity Sensor, 30 – 350 mm range, digital display, 2 x NPN NO/NC output

Mfr. Part # mic+25/EE/TC Categories , ,

The Microsonic Cylindrical M30 Body mic+25/EE/TC is a 30 – 350 mm range Ultrasonic Proximity Sensor, digital display, 2 x NPN NO/NC output.

Highlights:

  • 0 – 350 mm
  • 2 x NPN NO/NC switching output
  • Operating modes: proximity switch, reflective barrier and window
  • Programming by Teach-in buttons T1 and T2, LinkControl configurable
  • Resolution of 0.025 mm
  • Temperature compensation
  • 9–30 VDC operating voltage
  • Easy mounting M30 nickel-brass IP67 housing with M12 – 5 pin connector

Applications for mic+ ultrasonic sensors: The mic+ series are ideal sensors for conveyor systems, packaging machines, fill-level check, wafer board detection, labelling machines, sorting systems, sheet loop control, small component detection, part bowl feeders, or any sensing application that requires accurate, non-contact target detection.



In Stock: 0
Factory Lead-Time: Can Ship in 1 – 2 weeks
Quantity Unit Price Ext. Price
1+ US$399.93 US$399.93+
Unit Cost : US$
Extended Cost : US$399.93
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Cylindrical Body
Part Number

mic+25/EE/TC
Resolution

0.025 mm
Housing Material

Nickel-plated Brass
Weight (g)

150
Switching Output

2 x NPN NO/NC | 200 mA
Interface

Teach-in
Connection

M12 | 5-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Sensing Distance

350 mm
Body Size

M30

Data Sheet

Overview

  • Full details coming soon
