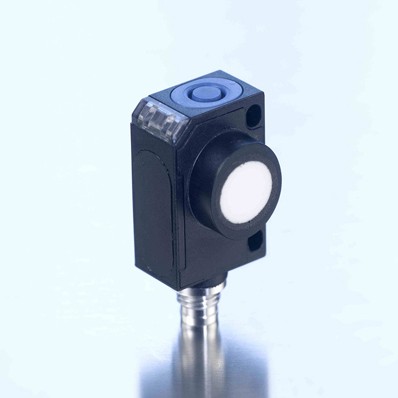

The Microsonic Cuboidal Body zws-35/CU/QS is a 64 – 600 mm range miniature Ultrasonic Distance Measurement Sensor, analogue 0-10 V output, M8 | 4 pin connector.
Features include:
- Sensing range 64 – 600 mm
- Output: Analogue 0 – 10 V
- Very compact housing
- Narrow sound field
- Programming by Teach-in push-button
- Resolution of 0.20 mm
- Temperature compensation
- Operating voltage 20 – 30 VDC
- ABS plastic housing with IP67 sealing and M8 – 4 pin connection
Applications: The miniature sized zws-35/CU/QS is an ideal sensor for packaging machines, paper converting, labelling machines, small component detection, or any sensing application with limited installation space.
In Stock: 0
Factory Lead-Time: Please request a quotation
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$302.77 | US$302.77+ |
Unit Cost : US$
Extended Cost : US$302.77
Specifications
| Product Type | Sensors |
|---|---|
| Brand | Microsonic |
| Family | Cuboidal Body |
| Part Number | zws-35/CU/QS |
| Resolution | 0.20 mm |
| Housing Material | ABS |
| Weight (g) | 11 |
| Switching Output | Analog 0-10 V |
| Interface | Teach-in |
| Connection | M8 | 4-pin |
| IP Rating | IP67 |
| Operating Temperature Range | -25 to +70 °C |
| Sensing Distance | 600 mm |
| Body Size | ZWS Miniature |
Data Sheet
Overview
- Full details coming soon
