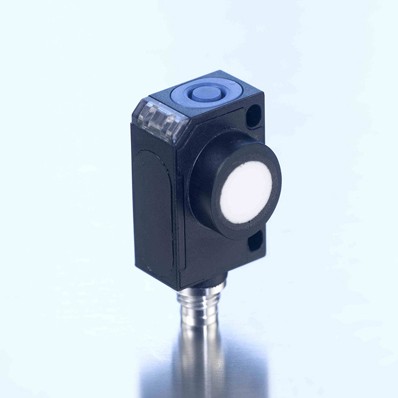

The Microsonic Cuboidal Body zws-35/CE/QS is a 64 – 600 mm range miniature Ultrasonic Proximity Sensor, NPN NO/NC output, M8 | 4 pin connector.
Features include:
- Sensing range 64 – 600 mm
- Output: NPN NO/NC
- Very compact housing
- Narrow sound field
- Programming by Teach-in push-button
- Resolution of 0.20 mm
- Temperature compensation
- Operating voltage 20 – 30 VDC
- ABS plastic housing with IP67 sealing and M8 – 4 pin connection
Applications: The miniature sized zws-35/CE/QS is an ideal sensor for packaging machines, paper converting, labelling machines, small component detection, or any sensing application with limited installation space.
In Stock: 0
Factory Lead-Time: Please request a quotation
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$253.26 | US$253.26+ |
Unit Cost : US$
Extended Cost : US$253.26
Specifications
| Product Type | Sensors |
|---|---|
| Brand | Microsonic |
| Family | Cuboidal Body |
| Part Number | zws-35/CE/QS |
| Resolution | 0.20 mm |
| Housing Material | ABS |
| Weight (g) | 11 |
| Switching Output | NPN NO/NC | 200 mA |
| Interface | Teach-in |
| Connection | M8 | 4-pin |
| IP Rating | IP67 |
| Operating Temperature Range | -25 to +70 °C |
| Sensing Distance | 600 mm |
| Body Size | ZWS Miniature |
Data Sheet
Overview
- Full details coming soon
Certifications
