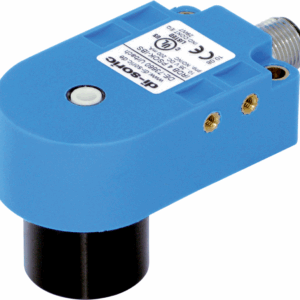

IRDB-4-NSOK-IBS di-soric Wire Break Ring Sensor, 4.0 mm, Static, NPN NO/NC
The di-soric IRDB-4-NSOK-IBS is a 4.0 mm inductive wire break ring sensor for continuous monitoring of conductive wire passing through the sensing opening.
This model uses static sensing, continuously detecting the presence of the wire while it remains within the sensing field. If the wire breaks or is no longer detected, the sensor output changes so the machine control system can respond.
The IRDB-4-NSOK-IBS provides 0.2 mm resolution, an NPN NO/NC output, adjustable sensitivity and an M12 4-pin connection.
Applications
Typical applications include:
- continuous wire-break monitoring
- fine-wire monitoring
- wire feeding equipment
- winding and unwinding systems
- wire drawing and forming equipment
- coil and spool processing
- cable and conductor processing
- automated production equipment
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Ships in 4 – 5 weeks
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$327.00 | US$327.00+ |
Unit Cost : US$
Extended Cost : US$327
Specifications
| Product Type | Sensors |
|---|---|
| Brand | di-soric |
| Family | Wire Break Ring Sensors |
| Part Number | IRDB-4-NSOK-IBS |
| Model ID Number | 204975 |
| Resolution | 0.2 mm |
| Housing Material | PA Plastic |
| Weight (g) | 100 |
| Switching Output | npn | NO/NC |
| Sensitivity Adjustment | Potentiometer |
| Connection | M12 | 4-pin |
| IP Rating | IP67 |
| Operating Temperature Range | -25 to +70 °C |
| Ring Diameter | 4.0 mm |
| Detection Principle | Static |
| Ring Material | Ceramic |
Data Sheet
Certifications
