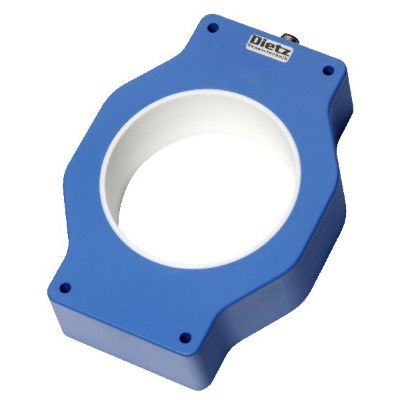

The Dietz IRD-100-PUK-ST4 is a 100 mm diameter inductive ring sensor with fast dynamic detection switching, PNP NO/NC output, M12, 4-pin connection.
This sensor upgrades and replaces old sensor model IRD-100-PSK-ST4.
Highlights:
- smallest detectable object size: 5.0 mm steel ball
- adjustable sensitivity
- adjustable output pulse stretching: 10 to 150ms
- object speed: min. 0.1m/s (.33 ft/s), max. 35 m/s (115 ft/s)
Applications for inductive ring sensors:
- Manufacturing: Monitoring and counting metal parts on production lines to ensure accurate assembly and quality control.
- Automotive Assembly: Detecting the presence and position of metal components during vehicle assembly.
- Recycling: Sorting metal items from non-metallic materials in recycling processes.
- Preventative Systems: Preventing machinery damage by identifying unwanted metal objects in equipment.
- Bowl Feeders and Parts Counting: Ensuring the correct flow of metal fasteners are fed into production processes.
- Part Ejection Verification: Confirming the successful ejection of metal parts from machinery to avoid jams and tooling damage
In Stock: 0
Factory Lead-Time: Can Ship in 1 – 2 weeks
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$803.51 | US$803.51+ |
Unit Cost : US$
Extended Cost : US$803.51
Specifications
| Product Type | Sensors |
|---|---|
| Brand | Dietz |
| Family | Inductive Ring Sensors |
| Part Number | IRD-100-PUK-ST4 |
| Resolution | 5.0 mm |
| Housing Material | PA Plastic |
| Weight (g) | 750 |
| Switching Output | PNP NO/NC | 200 mA |
| Sensitivity Adjustment | Potentiometer |
| Connection | M12 | 4-pin |
| IP Rating | IP67 |
| Operating Temperature Range | -25 to +70 °C |
| Part Number (Old) | IRD-100-PSK-ST4 |
| Dynamic Resolution | 5.0 mm |
| Supply Voltage | +10 to 35 VDC |
| Ring Diameter | 101 mm |
| Detection Principle | Dynamic |
| Ring Material | PETP Plastic |
