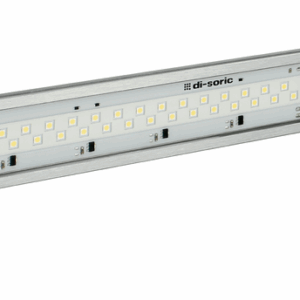

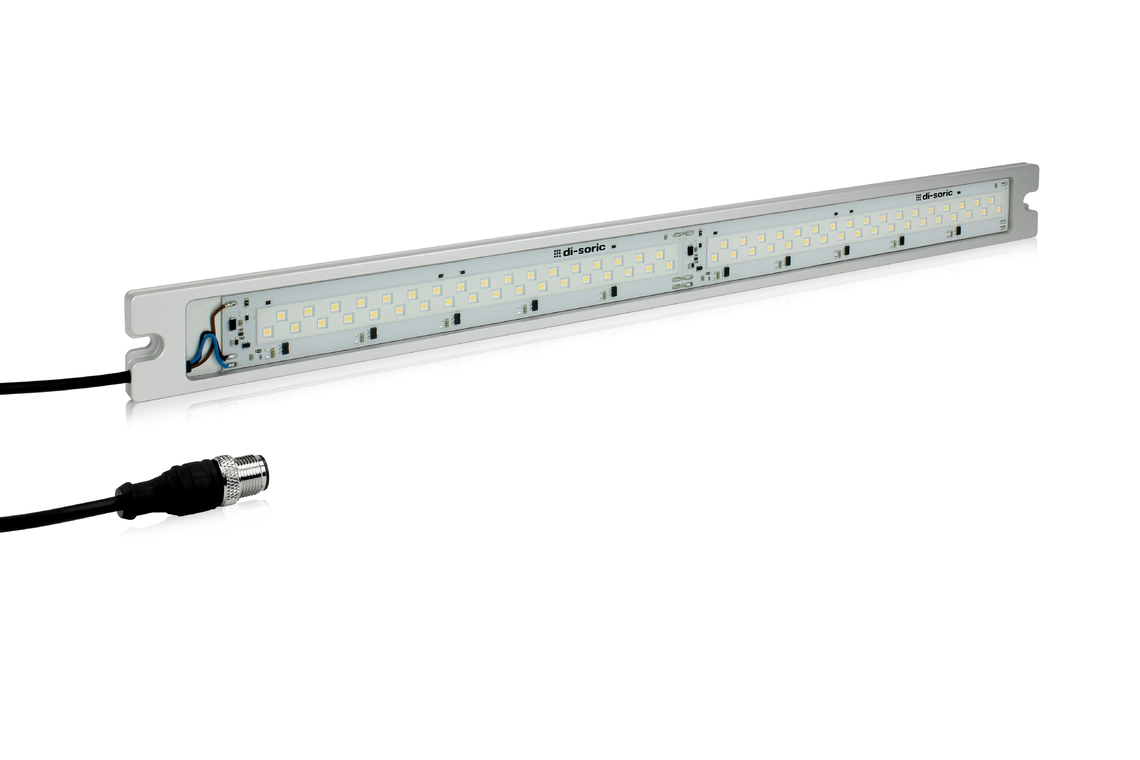

MB-N-481-K-B3 di-soric flat lying machine lighting 2200 Lumen, 440 x 30 mm, M12 connector
The di-soric MB-N-481-K-B3 is a 440 x 30 mm compact flat lying LED Machine Light with 2200 Lumen output. Installs with an M12 connection.
- Very good colour reproduction with a colour rendering index 85
- High-performance, long-life LEDs with reliable and even illumination
- High protection rating of IP 67
- Trigger input for external control
- Can be dimmed via a separate PWM (pulse width module) signal
- Magnetic holder set, adjustable mounting angles, and snap-on diffusion filter are all available optionally
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can Ship in 1 – 2 weeks
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$285.76 | US$285.76+ |
Unit Cost : US$
Extended Cost : US$285.76
Specifications
| Product Type | Sensors |
|---|---|
| Brand | di-soric |
| Family | Flat Lying Lighting |
| Part Number | MB-N-481-K-B3 |
| Housing Size | 480 x 40 mm |
| Weight (g) | 400 |
| Connection | Cable 0.3 m | M12 | 3-pin |
| IP Rating | IP67 |
| Operating Temperature Range | 0 to +40 °C |
| Illumination Area | 440 x 30 mm |
| Luminous Flux (lm) | 2200 |
Data Sheet
Overview
- Full details coming soon
Certifications
