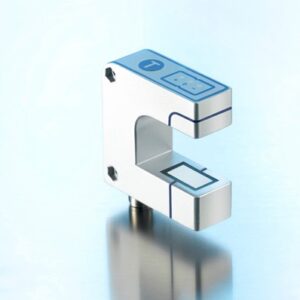

The Microsonic bks+6/FIU is a compact, high-precision, 60 mm wide ultrasonic fork sensor designed for contact-free web edge sensing of foils, paper, and other materials.
Highlights:
- Web edge sensing variance range: up to 40 mm web side to side movement
- Analogue output: 4-20 mA and 0-10 V, selected by Teach-in button
- Digital output: 1 x Push-Pull NO/NC
- Resolution of 0.01 mm
- Smart Sensor Profiles and LinkControl for configuration from a PC
- Programming by Teach-in push-buttons
- Compact robust metal IP65 housing with M12 | 5 pin connection plug
- Operating voltage 20 – 30 VDC
Applications: The bks+6/FIU is ideal for applications requiring accurate web guide sensing in limited spaces. This sensor provides reliable and precise measurements for automatically detecting and tracking paper edges, film, adhesive tape, foils, and more, ensuring orderly winding and slitting processes.
In Stock: 0
Factory Lead-Time: Can ship in 2 – 3 days
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$885.60 | US$885.60+ |
Unit Cost : US$
Extended Cost : US$885.6
Specifications
| Product Type | Sensors |
|---|---|
| Brand | Microsonic |
| Family | Web Edge Control |
| Part Number | bks+6/FIU |
| Fork Opening | 60 mm |
| Resolution | 0.01 mm |
| Fork Length | 73 mm |
| Housing Material | Zinc Die-cast |
| Weight (g) | 280 |
| Switching Output | Analog and Push-pull | 100 mA | NO/NC |
| Interface | LinkControl, Teach-in |
| Connection | M12 | 5-pin |
| IP Rating | IP65 |
| Operating Temperature Range | +5°C to 60°C |
| Supply Voltage | 20 – 30 VDC |
| Sensor Type | Ultrasonic |
Data Sheet
Overview
- Full details coming soon
