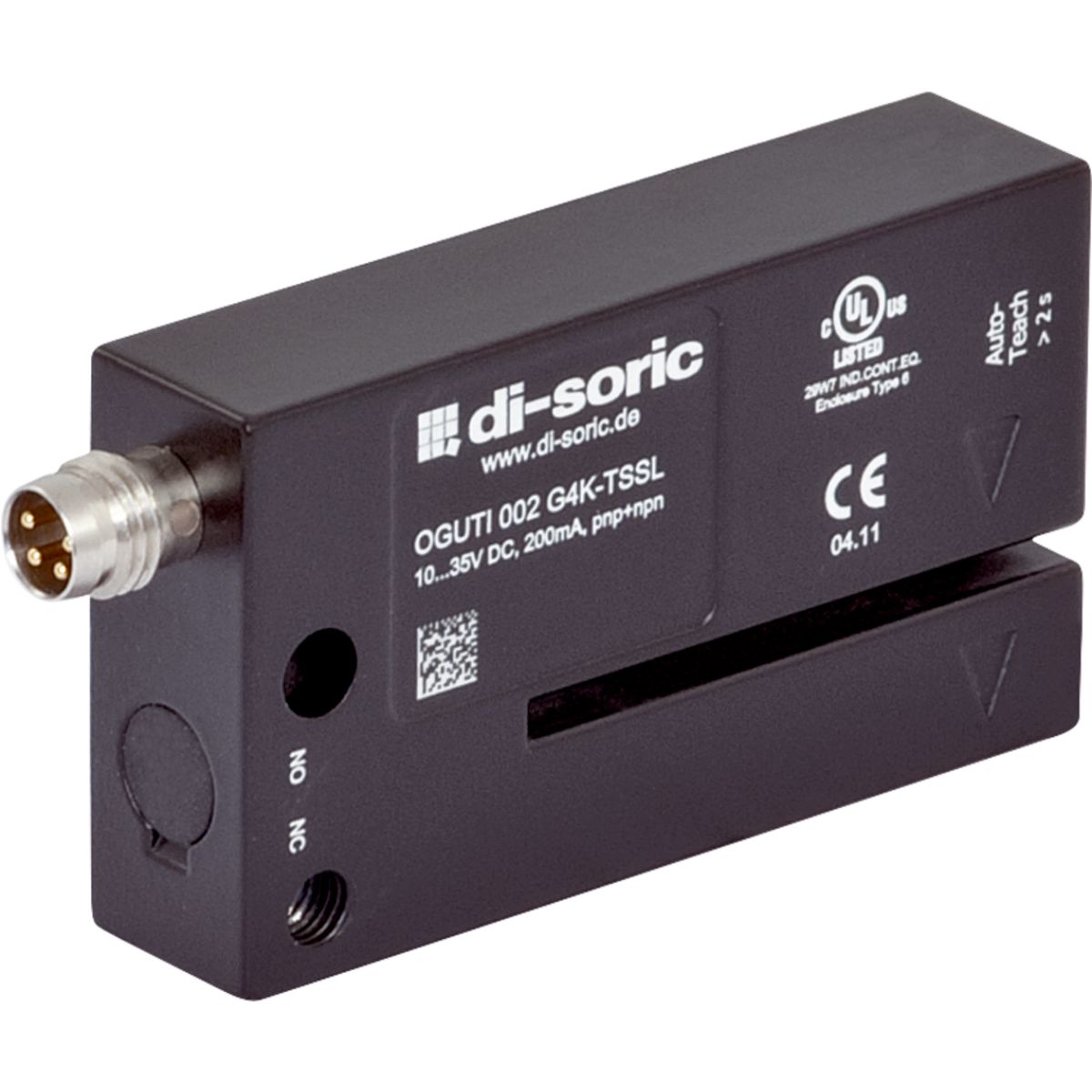

OGUTI-002-G4K-TSSL di-soric 2 mm x 40 mm optical fork sensor for label and splice sensing, 2 outputs
The di-soric OGUTI-002-G4K-TSSL is a 2 mm x 40 mm optical fork sensor for label and splice sensing, 2 outputs
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Please request a quotation
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$0.00 | US$0.00+ |
Unit Cost : US$
Extended Cost : US$0
Specifications
| Product Type | Sensors |
|---|---|
| Brand | di-soric |
| Family | Label and Splice |
| Part Number | OGUTI-002-G4K-TSSL |
| Fork Opening | 2 mm |
| Resolution | 0.5 mm |
| Fork Length | 40 mm |
| Housing Material | Zinc-die-cast | Black |
| Weight (g) | 250 |
| Switching Output | 2 x Push-pull | 200 mA | NO/NC |
| Interface | Teach-in |
| Switching Frequency | 3.0kHz |
| Connection | M8 | 4-pin |
| IP Rating | IP67 |
| Operating Temperature Range | -10 to +60 °C |
| Sensor Type | Optical |
Data Sheet
Overview
- Full details coming soon
Certifications
