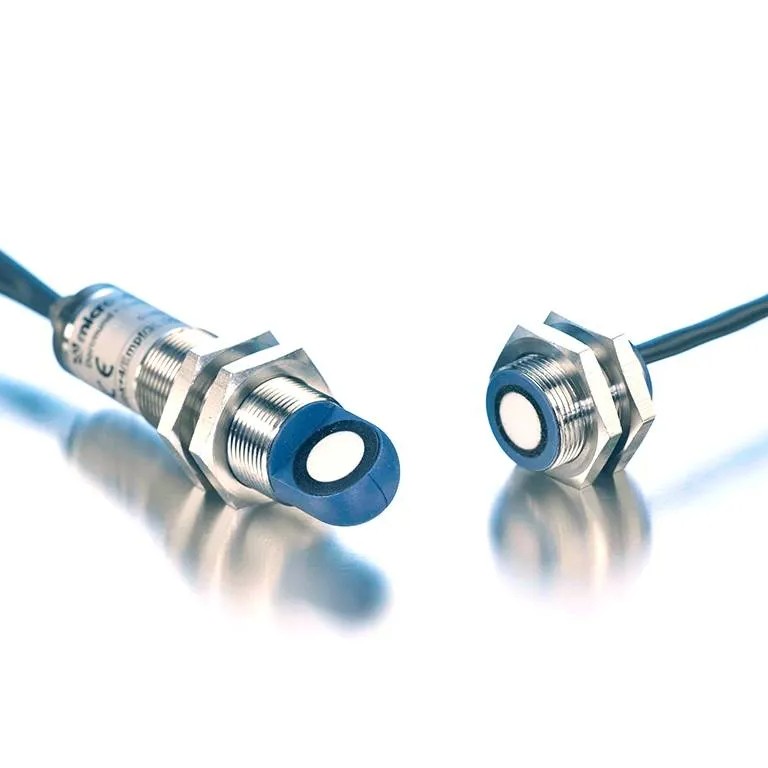

dbk+4/WK/3CDD/M18-E+S, Microsonic Double Sheet Detector, 20 – 60 mm range, 90° angled M18 receiver head, 2 x PNP NO/NC outputs for independent double & missing sheet signals

The dbk+4/WK/3CDD/M18-E+S is a Microsonic ultrasonic double sheet detector for reliable detection of double sheets, missing sheets, and single-sheet conditions in paper, film, metal-laminated materials, fine corrugated board, and wafers. This version uses a 90° angled M18 receiver head for installations where mounting space or cable routing makes an angled sensing layout more practical, offers a 20–60 mm sensor spacing range with 40 mm optimal spacing, and provides 2 x PNP NO/NC outputs for independent double-sheet and missing-sheet signals.

It is used in OEM machinery, packaging equipment, print and converting systems, and other automation applications where dependable sheet separation monitoring is required. The sensor supports Teach-in programming, LinkControl configuration, and fast response for demanding industrial use.

Properties

Part Number: dbk+4/WK/3CDD/M18-E+S
Brand: Microsonic
Product Type: Ultrasonic double sheet detector
Sensor Head Style: 90° angled M18 receiver head
Sensor Spacing Range: 20–60 mm
Optimal Spacing: 40 mm +/- 2 mm
Outputs: 2 x PNP NO/NC
Interface: Teach-in

Applications

The dbk+4/WK/3CDD/M18-E+S is used in sheet-fed and web-handling machinery where reliable distinction between single sheets, double sheets, and missing sheets is required. Its angled receiver-head design is useful where installation space, mounting orientation, or cable routing makes a standard inline layout less practical.

• Packaging equipment
• Print and paper handling systems
• Print finishing and converting machinery
• Film processing lines
• Sheet-fed industrial automation systems
• Installations requiring a 90° angled receiver-head layout
• Applications requiring double-sheet and missing-sheet monitoring
