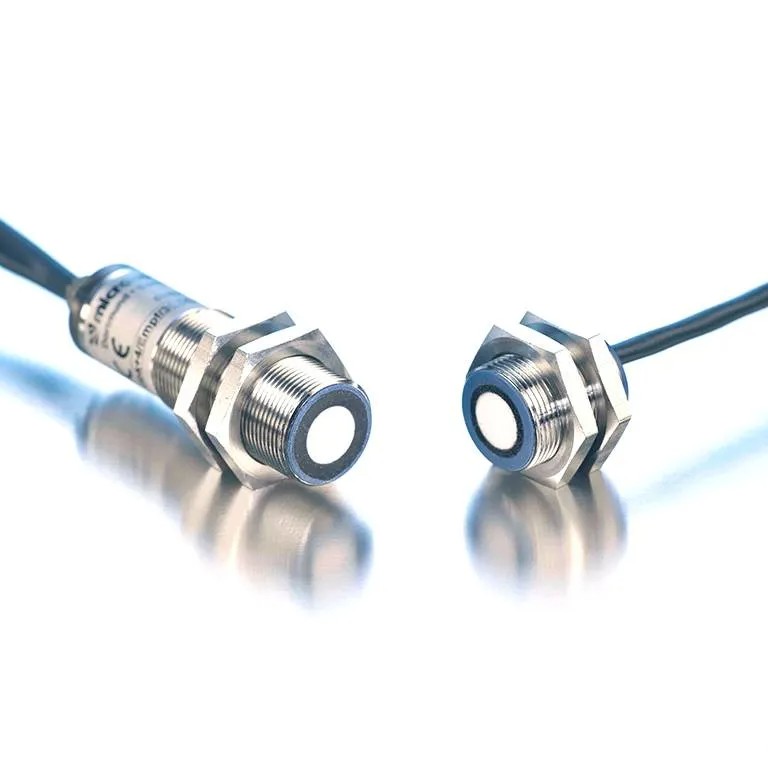

The dbk+4/3CDD/M18-E+S is a Microsonic ultrasonic double sheet detector for reliable detection of double sheets, missing sheets, and single-sheet conditions in paper, film, metal-laminated materials, fine corrugated board, and wafers. This version offers a 20–60 mm sensor spacing range with 40 mm optimal spacing and provides 2 x PNP NO/NC outputs for independent double-sheet and missing-sheet signals.
It is used in OEM machinery, packaging equipment, print and converting systems, and other automation applications where dependable sheet separation monitoring is required. The sensor supports Teach-in programming, LinkControl configuration, and fast response for demanding industrial use.
Properties:
Part Number: dbk+4/3CDD/M18-E+S
Brand: Microsonic
Product Type: Ultrasonic double sheet detector
Sensor Spacing Range: 20–60 mm
Optimal Spacing: 40 mm +/- 2 mm
Outputs: 2 x PNP NO/NC
Interface: Teach-in
Applications:
The dbk+4/3CDD/M18-E+S is used in sheet-fed and web-handling machinery where reliable distinction between single sheets, double sheets, and missing sheets is required. It helps prevent jams, misfeeds, and product waste in automated material feed processes.
- Packaging equipment
- Print and paper handling systems
- Print finishing and converting machinery
- Film processing lines
- Sheet-fed industrial automation systems
- Applications requiring double-sheet and missing-sheet monitoring
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$703.49 | US$703.49+ |
Specifications
| Product Type | Sensors |
|---|---|
| Brand | Microsonic |
| Family | Double Sheet Detection |
| Part Number | dbk+4/3CDD/M18-E+S |
| Housing Material | Nickel-plated Brass |
| Weight (g) | 130 |
| Switching Output | 2 x PNP 200 mA | NO/NC |
| Interface | Teach-in |
| Connection | 2 m PUR Cable | M8 Connector |
| IP Rating | IP65 |
| Operating Temperature Range | +5°C to 60°C |
| Sensor Type | Ultrasonic |
| Sensor Spacing Range | 20 – 60 mm | Optimal 40 mm +/- 3 mm |
