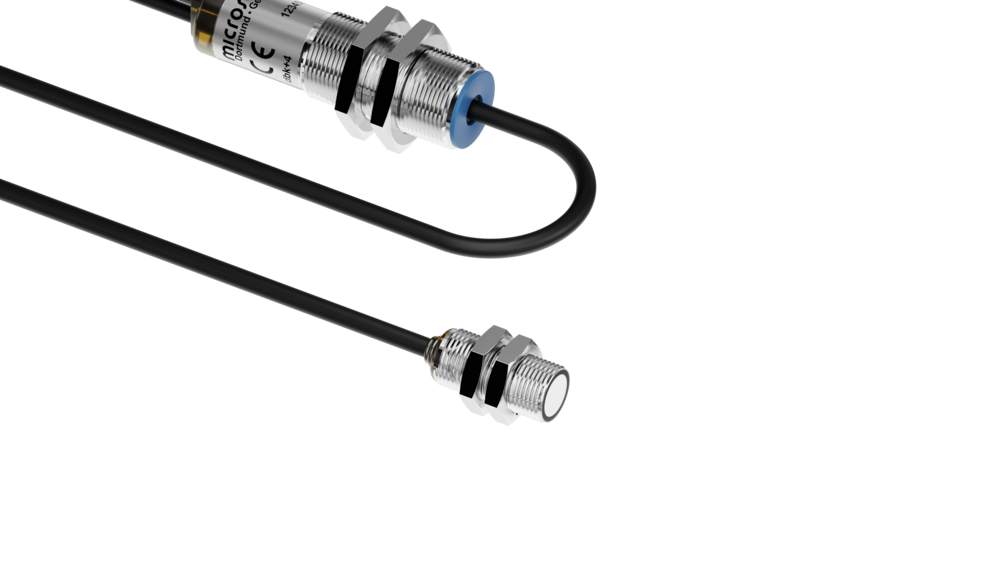

dbk+4/Empf/M12/3BEE/M18 Microsonic Double Sheet Detector Receiver, M12 Sensing Head, 20–40 mm Range, 2 × NPN Outputs

The dbk+4/Empf/M12/3BEE/M18 is the receiver component for compatible Microsonic dbk+4 ultrasonic double-sheet detection systems. It is intended for replacement or maintenance applications where the transmitter is already installed and only the receiver needs to be replaced.

This version uses a compact M12 sensing head and operates with a 20–40 mm transmitter-to-receiver spacing, with an optimal spacing of 20 mm ±2 mm. The smaller sensing head makes it useful where mounting space around the sheet path is limited.

The receiver evaluates the ultrasonic signal passing through the sheet material and provides separate switching outputs for double-sheet and missing-sheet detection. It provides 2 × NPN switching outputs, with Teach-in for adapting the sensor to the application. The receiver should be matched with the correct compatible dbk+4 transmitter and system configuration.

Applications

• Replacement receiver for compatible dbk+4 systems
• Maintenance and repair
• Double-sheet detection systems
• Missing-sheet detection systems
• Sheet-fed printing equipment
• Paper handling systems
• Packaging machinery
• Print and converting machinery
• Collating and feeding systems
• Applications requiring a compact M12 sensing head
• Installations where mounting space is limited
