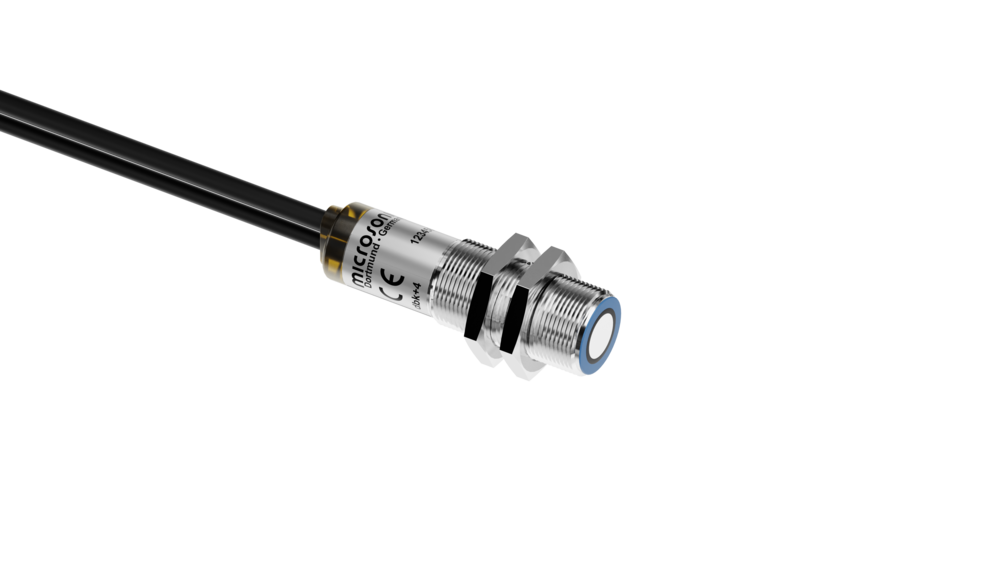

dbk+4/Empf/3CDD/M18/K7K2 Microsonic Double Sheet Detector Receiver, 20–60 mm Range, 2 × PNP Outputs, Extended Cable

The dbk+4/Empf/3CDD/M18/K7K2 is the receiver component for compatible Microsonic dbk+4 ultrasonic double-sheet detection systems. It is intended for replacement or maintenance applications where the transmitter is already installed and only the receiver needs to be replaced.

This cylindrical M18 receiver operates with a 20–60 mm transmitter-to-receiver spacing, with an optimal spacing of 40 mm ±3 mm. It evaluates the ultrasonic signal passing through the sheet material and provides separate switching outputs for double-sheet and missing-sheet detection.

The receiver provides 2 × PNP switching outputs that can be configured as NO or NC. This K7K2 version uses an extended cable configuration, making it useful where additional cable reach is required between system components. Teach-in allows the sensor to be adjusted for the application, and the receiver should be matched with the correct compatible dbk+4 transmitter and system configuration.

Applications

• Replacement receiver for compatible dbk+4 systems
• Maintenance and repair
• Double-sheet detection systems
• Missing-sheet detection systems
• Sheet-fed printing equipment
• Paper handling systems
• Packaging machinery
• Print and converting machinery
• Collating and feeding systems
• Applications requiring additional cable reach
