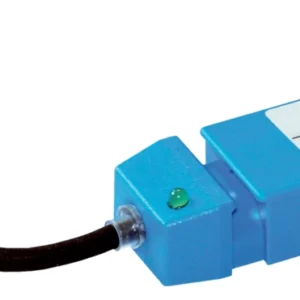

IS 70 PSLK-K-BS di-soric Inductive Tube Sensor, Static, PNP NO, M12 Pigtail
The di-soric IS 70 PSLK-K-BS is a static inductive tube sensor for detecting metallic parts moving through supply tubes.
The sensor mounts externally to the tube, allowing part detection without requiring the tube to pass through a closed sensing ring. This mounting arrangement allows the sensor to be installed or repositioned without dismantling the supply tube.
The IS 70 PSLK-K-BS uses static sensing with a 14 mm switching distance, PNP normally open output, and a short pigtail with M12 3-pin connection. Response/release time is 0.5 / 100 ms.
Applications
Typical applications include:
- metallic part detection in supply tubes
- part counting
- accumulation monitoring
- feeder systems
- automated part handling
- assembly equipment
- packaging equipment
- production machinery
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Ships in 1 – 2 weeks
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$0.00 | US$0.00+ |
Unit Cost : US$
Extended Cost : US$0
Specifications
| Product Type | Sensors |
|---|---|
| Brand | di-soric |
| Family | Tube Sensors |
| Part Number | IS 70 PSLK-K-BS |
| Model ID Number | 203299 |
| Housing Size | 70 x 20 x 12 mm |
| Housing Material | PC Plastic |
| Weight (g) | 100 |
| Switching Output | PNP | NO | 200 mA |
| Response / Release Time | 0.5 / 100 ms |
| Connection | Pigtail M12 | 3-pin |
| IP Rating | IP67 |
| Operating Temperature Range | -25 to +70 °C |
| Supply Voltage | 10–35 VDC |
| Detection Principle | Static |
| Sensing Distance | 14 mm |
