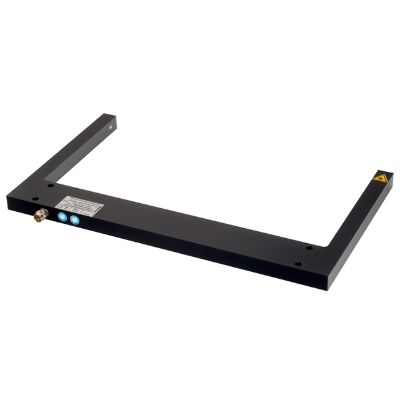

OGSL-220-PUK-ST3 Dietz 220 mm U-Shaped Fork Light Barrier, visible red laser, 0.05 mm high resolution, PNP NO/NC output

Product Name:
OGSL-220-PUK-ST3 Dietz 220 mm U-Shaped Fork Light Barrier, visible red laser, 0.05 mm high resolution, PNP NO/NC output

Mfr. Part # OGSL-220-PUK-ST3 Categories , ,

The Dietz OGSL-220-PUK-ST3 is a 220 mm width visible red laser fork sensor with a high resolution of 0.05 mm, PNP NO/NC switchable output, and M8-3 pin plug connection.

Features:

  • Visible red laser with adjustable sensitivity
  • Fork width  – 220 mm
  • Resolution – 0.05 mm
  • Switching frequency – 1.25 kHz
  • Output – PNP NO/NC switchable
  • Max output current – 200 mA
  • Supply voltage – 10 – 30 VDC
  • Short circuit and polarity protected
  • Robust anodized aluminum housing, IP67 sealing
  • Operating temperature range of +2ºC to +45ºC
  • M8 (3 wire) plug connector
In Stock: 0
Factory Lead-Time: Can ship in 5 – 7 days
Quantity Unit Price Ext. Price
1+ US$476.91 US$476.91+
Unit Cost : US$
Extended Cost : US$476.91
Add to Quote

Specifications

Product Type

Sensors
Brand

Dietz
Family

Standard U-Shaped Fork Light Barriers
Part Number

OGSL-220-PUK-ST3
Fork Opening

220 mm
Light Source

Laser-Visible Red
Resolution

0.05 mm
Housing Material

Aluminum | Black
Weight (g)

150
Switching Output

pnp | 100 mA | NO/NC | switchable
Light Colour

Red
Switching Frequency

2500 Hz
Sensitivity Adjustment

Potentiometer
Connection

M8 | 3-pin
IP Rating

IP67
Operating Temperature Range

+2 to +45 °C
