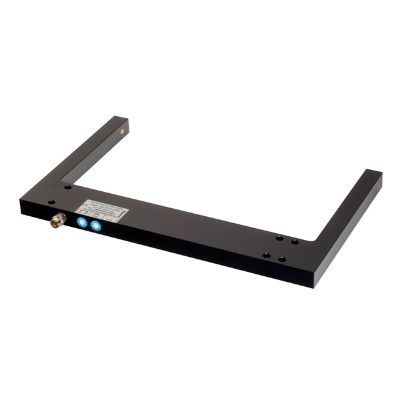

The Dietz OGS-180-PUK-ST3 is a 180 mm width Red Light Fork Sensor / Slot Sensor, high resolution 0.4 mm, PNP NO/NC switchable output, M8-3 pin connection.
Features:
- Red light with adjustable sensitivity
- Fork width – 180 mm
- Resolution – 0.4 mm
- Switching frequency – 1.25 kHz
- Output – PNP NO/NC switchable
- Max output current – 200 mA
- Supply voltage – 10 – 35 VDC
- Short circuit and polarity protected
- Robust anodized aluminum housing, IP67 sealing
- Operating temperature range of -10ºC to +60ºC
- M8 (3 wire) connector
In Stock: 0
Factory Lead-Time: Can Ship in 1 – 2 weeks
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$290.70 | US$290.70+ |
Unit Cost : US$
Extended Cost : US$290.7
Specifications
| Product Type | Sensors |
|---|---|
| Brand | Dietz |
| Family | Standard U-Shaped Fork Light Barriers |
| Part Number | OGS-180-PUK-ST3 |
| Fork Opening | 180 mm |
| Light Source | LED-Visible Red |
| Resolution | 0.4 mm |
| Housing Material | Aluminum | Black |
| Weight (g) | 150 |
| Switching Output | pnp | 100 mA | NO/NC | switchable |
| Light Colour | Red |
| Switching Frequency | 1250 Hz |
| Sensitivity Adjustment | Potentiometer |
| Connection | M8 | 3-pin |
| IP Rating | IP67 |
| Operating Temperature Range | -25 to +65 °C |
