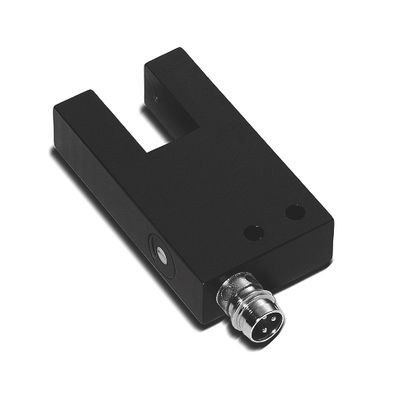

The Dietz OGS-010-PSKI-ST3 is a 10 mm width Infrared Light Fork Sensor / Slot Sensor with PNP-NO output, M8, 3-pin connection
In Stock: 0
Factory Lead-Time: Please request a quotation
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$0.00 | US$0.00+ |
Unit Cost : US$
Extended Cost : US$0
Specifications
| Product Type | Sensors |
|---|---|
| Brand | Dietz |
| Family | Standard U-Shaped Fork Light Barriers |
| Part Number | OGS-010-PSKI-ST3 |
| Fork Opening | 10 mm |
| Light Source | LED-Infrared |
| Resolution | 0.4 mm |
| Housing Material | Aluminum | Black |
| Weight (g) | 150 |
| Switching Output | pnp | 100 mA | NO |
| Light Colour | Infrared |
| Switching Frequency | 2500 Hz |
| Sensitivity Adjustment | Potentiometer |
| Connection | M8 | 3-pin |
| IP Rating | IP67 |
| Operating Temperature Range | -25 to +65 °C |
Data Sheet
Overview
- Full details coming soon
Certifications
