Mfr. Part # OGUP-030-G3-T3 Categories , ,

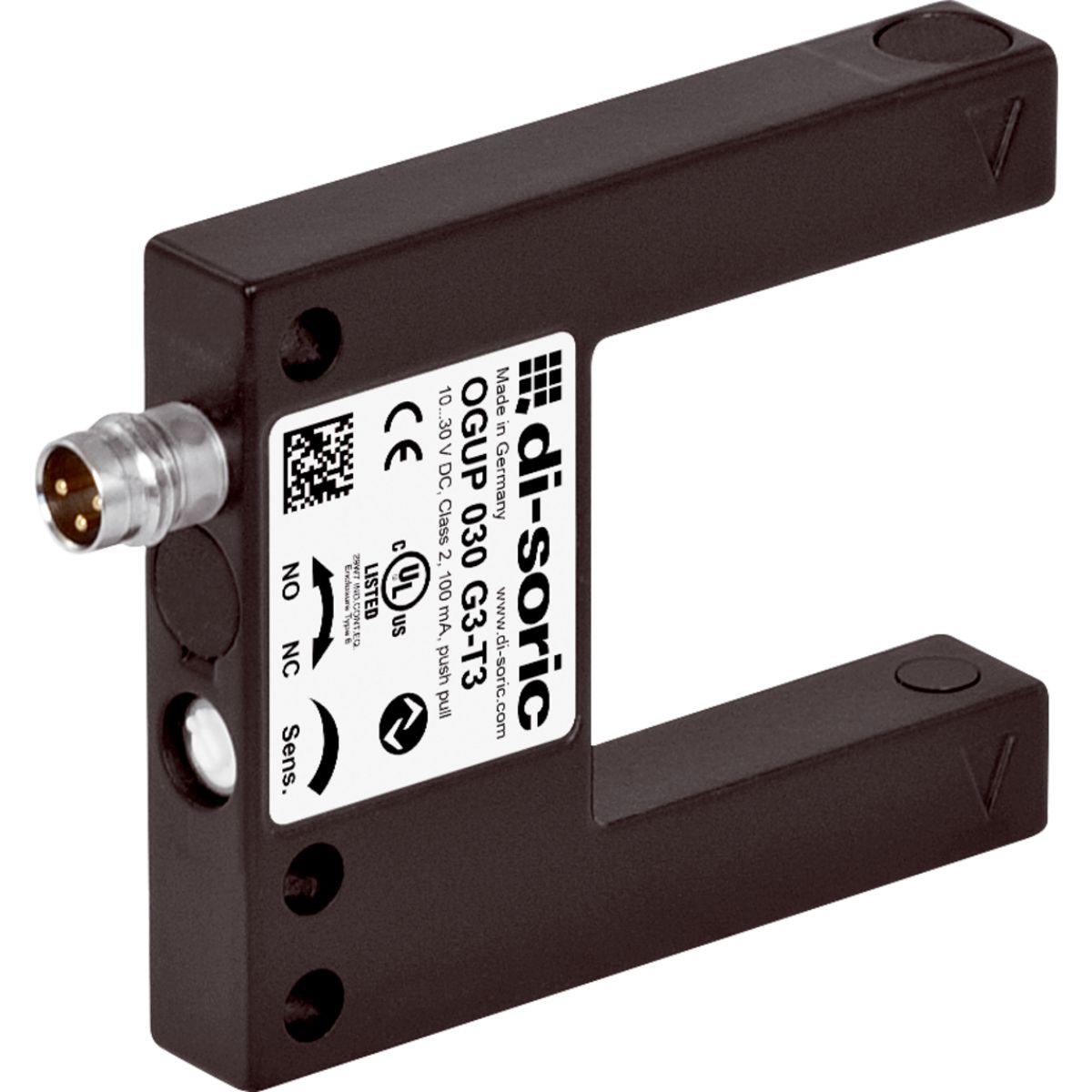

The di-soric OGUP-030-G3-T3 is a 30 mm U-Shaped Fork Infrared Light Barrier. High power for dirty applications, four modes of operation, IO-Link & manually configurable, M8, 3-pin connection

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can Ship Immediately
Add to Quote

Specifications

Product Type

Sensors

Brand

di-soric

Family

Standard U-Shaped Fork Light Barriers

Part Number

OGUP-030-G3-T3

Fork Opening

30 mm

Light Source

LED-High Power

Resolution

2.0 mm

Housing Size

50 / 60 / 50 mm

Fork Length

35 mm

Housing Material

Zinc | Black

Weight (g)

100

Switching Output

Push-pull | 100 mA | NO/NC | switchable

Interface

IO-Link

Light Colour

Infrared

Switching Frequency

200 Hz

Sensitivity Adjustment

Potentiometer or IO-Link

Connection

M8 | 3-pin

IP Rating

IP67

Operating Temperature Range

-25 to +65 °C

Data Sheet

Overview

  • Full details coming soon
