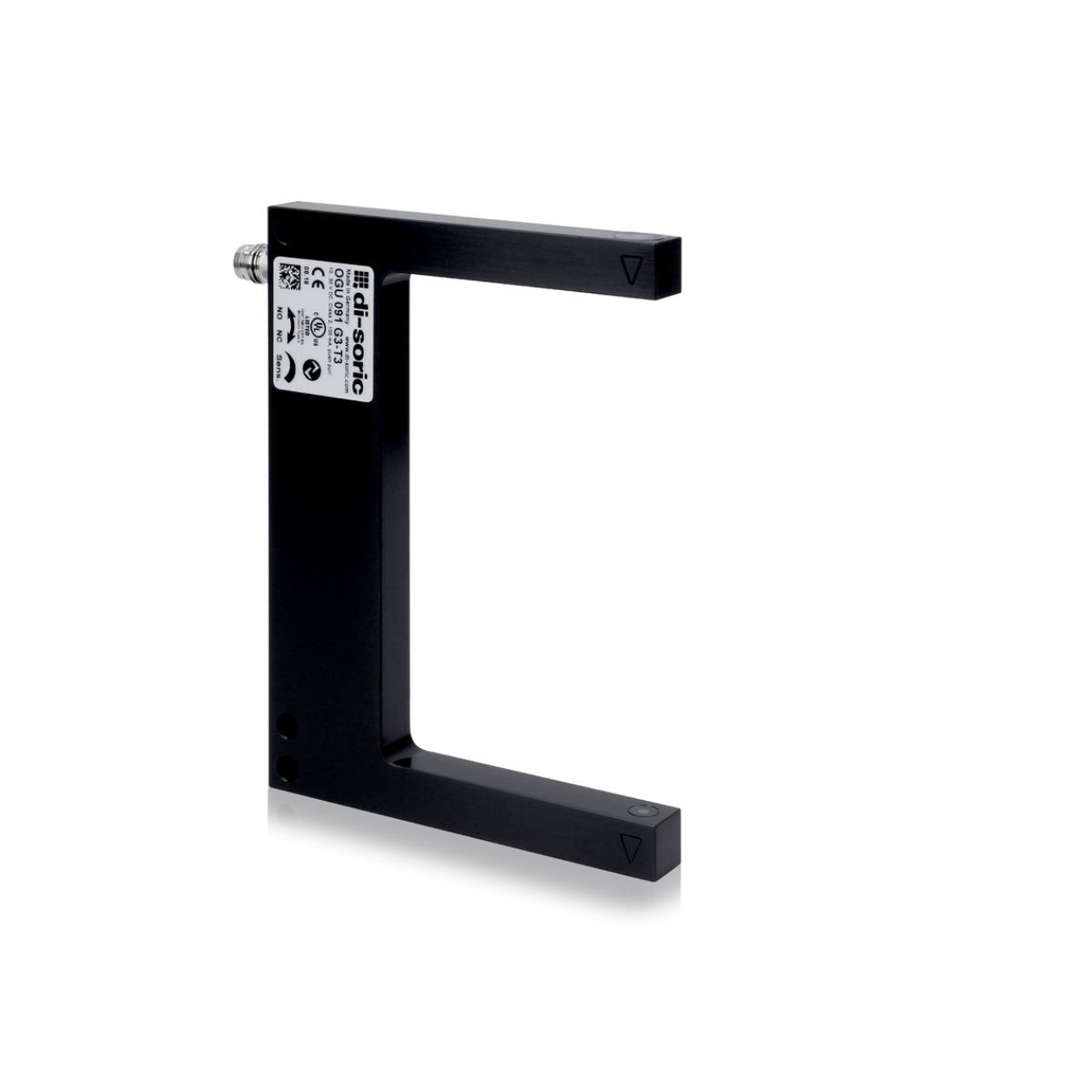

OGU-091-G3-T3 di-soric 90 mm standard U-shaped visible red light fork barrier, Push-pull 100 mA NO/NC, IO-Link

The di-soric OGU-091-G3-T3 is a standard U-shaped visible red light fork barrier with a 90 mm fork opening and 55 mm fork length for precise, repeatable detection of labels, edges, small parts, and product presence in industrial automation applications. This version uses an LED-visible red light source, offers 0.3 mm resolution, and provides Push-pull 100 mA NO/NC switchable output with IO-Link for parameter setting, diagnostics, and easier machine changeover support.

Its 90 mm fork opening provides additional clearance for packaging, assembly, labeling, and conveyor applications where accurate fixed-gap detection is needed. The visible red beam can help during setup, positioning, and alignment, while the aligned fork design helps provide dependable sensing through the opening without requiring constant transmitter and receiver adjustment.

Key Features

• 90 mm fork opening: suited to labels, edges, small parts, and product paths requiring greater clearance than smaller standard fork sensors
• 55 mm fork length: compact fork profile within the 90 mm opening format
• LED-visible red light source: provides a visible beam that can be helpful during setup, positioning, and alignment
• 0.3 mm resolution: supports precise detection of labels, edges, and small targets
• Push-pull 100 mA NO/NC switchable output: flexible integration into machine control systems
• IO-Link: supports parameter setting, diagnostics, and easier production changeover
• Standard U-shaped aligned sensing design: helps provide stable, repeatable detection through the fork opening

Applications

The OGU-091-G3-T3 is used where accurate, repeatable detection is needed in automation systems with a 90 mm fork opening and visible red light source.

• Label detection in packaging and converting equipment
• Edge detection for positioning and alignment tasks
• Product presence monitoring in conveyors, feeders, and transfer points
• Small-part detection in assembly and handling systems with greater product clearance requirements
• Applications where visible beam setup is helpful during installation, adjustment, or maintenance
