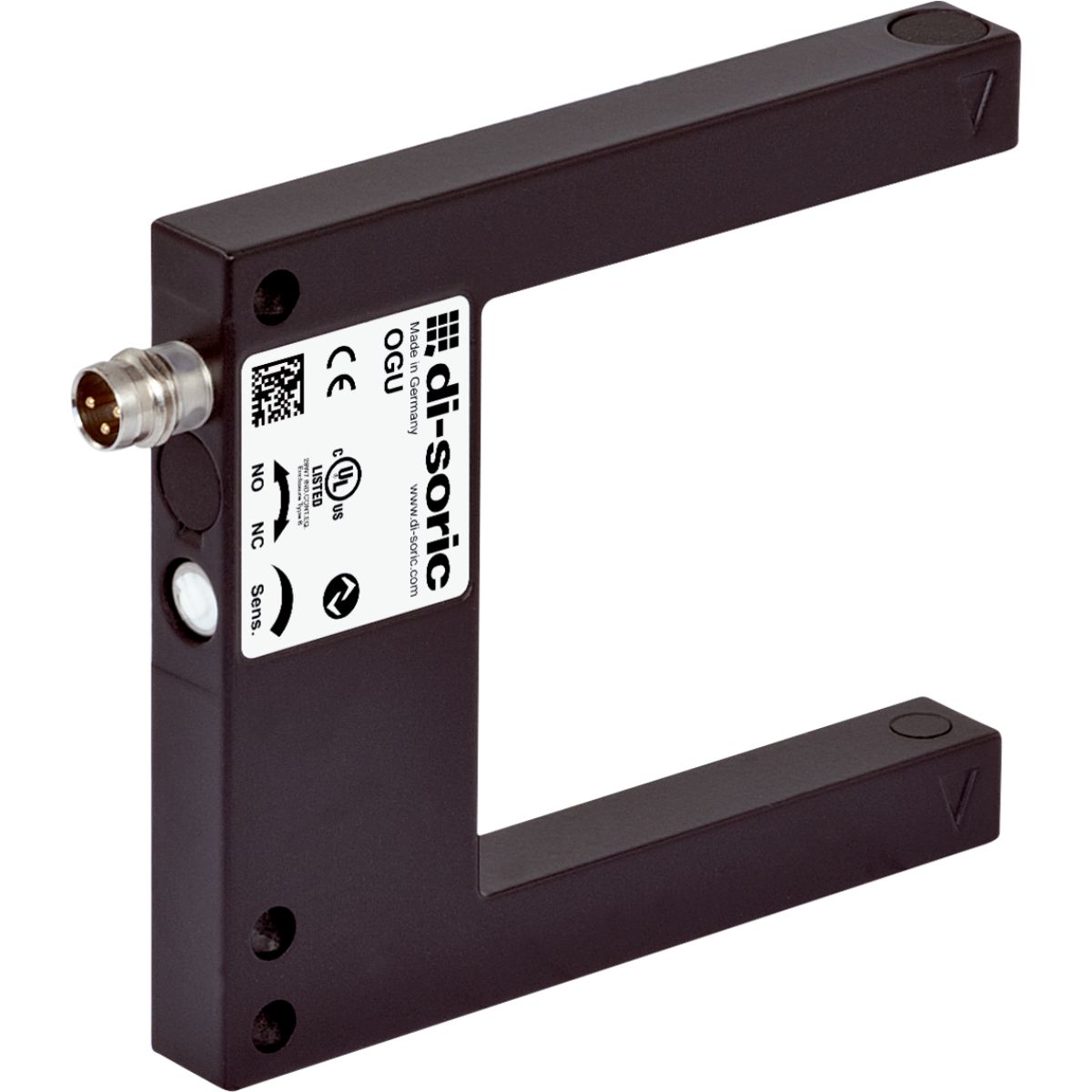

OGU-051-G3-T3 di-soric 50 mm standard U-shaped visible red light fork barrier, Push-pull 100 mA NO/NC, IO-Link

The di-soric OGU-051-G3-T3 is a standard U-shaped visible red light fork barrier with a 50 mm fork opening for precise, repeatable detection of labels, edges, small parts, and product presence in industrial automation applications. This version uses an LED-visible red light source, offers 0.3 mm resolution, and provides Push-pull 100 mA NO/NC switchable output with IO-Link for parameter setting, diagnostics, and easier machine changeover support.

Its standard 50 mm opening provides additional clearance for packaging, assembly, labeling, and conveyor applications where accurate fixed-gap detection is needed. Within this size range, the visible red light version is useful where a visible beam can help during setup, positioning, and alignment, while the aligned fork design helps provide dependable sensing through the opening without requiring constant transmitter and receiver adjustment.

Key Features

• 50 mm fork opening: suited to labels, edges, small parts, and product paths requiring more clearance than smaller standard fork sensors
• LED-visible red light source: provides a visible beam that can be helpful during setup, positioning, and alignment
• 0.3 mm resolution: supports precise detection of labels, edges, and small targets
• Push-pull 100 mA NO/NC switchable output: flexible integration into machine control systems
• IO-Link: supports parameter setting, diagnostics, and easier production changeover
• Standard U-shaped housing: suited to applications requiring a fixed sensing gap with dependable repeatability
• Repeatable fork-sensor alignment: transmitter and receiver are aligned in one housing for stable sensing performance

Applications

The OGU-051-G3-T3 is used where accurate, repeatable detection is needed in automation systems with a 50 mm fork opening and a visible red light source.

• Label detection in packaging and converting equipment
• Edge detection for positioning and alignment tasks
• Product presence monitoring in conveyors, feeders, and transfer points
• Small-part detection in assembly and handling systems with moderate product clearance requirements
• Applications where visible beam setup is helpful during installation, adjustment, or maintenance
