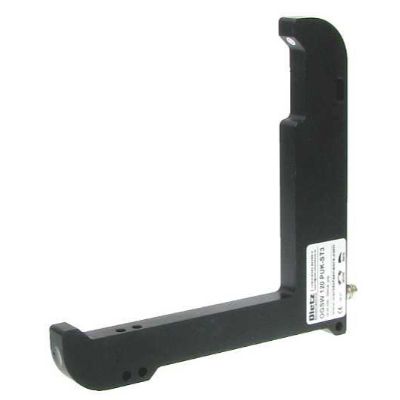

The Dietz OGSWU-120-PUKI-ST3 is a 120 mm L-Shaped Fork Sensor / Angle Sensor with high power for dirty applications, PNP-NO/NC output, M8, 3-pin connection
In Stock: 0
Factory Lead-Time: Please request a quotation
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$0.00 | US$0.00+ |
Unit Cost : US$
Extended Cost : US$0
Specifications
| Product Type | Sensors |
|---|---|
| Brand | Dietz |
| Family | Angled and L-Shaped Fork Light Barriers |
| Part Number | OGSWU-120-PUKI-ST3 |
| Fork Opening | 120 mm |
| Light Source | LED-Infrared |
| Resolution | 0.05 mm |
| Housing Material | Aluminum | Black |
| Weight (g) | 150 |
| Switching Output | pnp | 100 mA | NO/NC | switchable |
| Light Colour | Infrared |
| Switching Frequency | 2500 Hz |
| Sensitivity Adjustment | Potentiometer |
| Connection | M8 | 3-pin |
| IP Rating | IP67 |
| Operating Temperature Range | -25 to +65 °C |
| Ring Material | 11.8 |
| Reference Opening | 10 pcs |
| Active Zone Height | -40 |
| Active Zone Range | 600 |
| Sensor Spacing Range | M25x1.5 |
| Illumination Area | M25x1.5 |
| Luminous Flux (lm) | Large Hex |
| Thread Length (mm) | 13 |
| Adapter Length (mm) | 49 |
Data Sheet
Overview
- Full details coming soon
Certifications
