OGWSD-70-P3K-TSSL di-soric 70 x 62 mm Frame / Window Sensor with PNP / NO output , static & dynamic modes, high resolution
di-soric OGWSD-70-P3K-TSSL is a 70 x 62 mm Frame / Window Sensor with PNP / NO output, static & dynamic switchable.

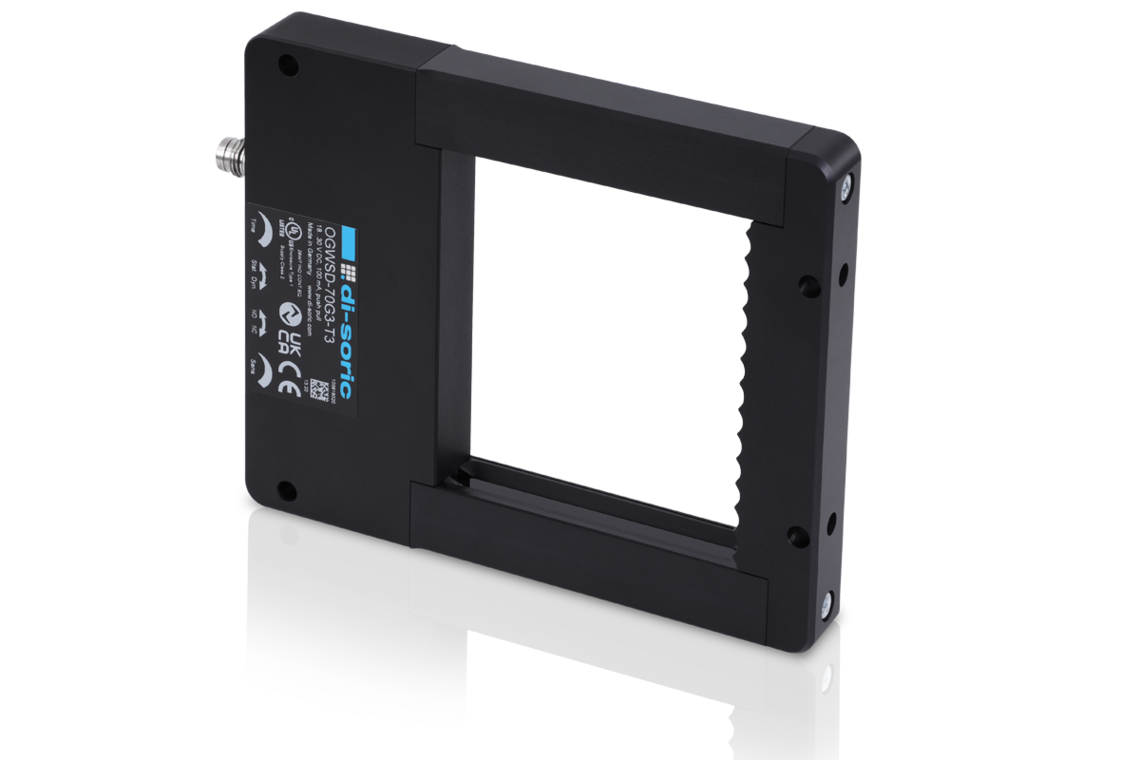

NOTE: This sensor has been discontinued and replaced by new model # OGWSD-70G3-T3 featuring built-in IO-Link.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Please request a quotation
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$0.00 | US$0.00+ |
Unit Cost : US$
Extended Cost : US$0
Specifications
| Product Type | Sensors |
|---|---|
| Brand | di-soric |
| Family | Static and Dynamic Sensing – IO-Link |
| Part Number | OGWSD-70-P3K-TSSL |
| Model ID Number | 201413 |
| Light Source | LED |
| Housing Material | Aluminum | Black |
| Weight (g) | 210 |
| Switching Output | Push-pull | 100 mA | NO/NC | switchable |
| Interface | IO-Link |
| Light Colour | Infrared |
| Sensitivity Adjustment | Potentiometer |
| Connection | M8 | 3-pin |
| IP Rating | IP67 |
| Operating Temperature Range | -10 to +60 °C |
| Part Number (Old) | OGWSD 70 P3K-TSSL | OGWSD 70 N3K-TSSL |
| Detection Area | 70 x 62 mm |
| Dynamic Resolution | 1.5 mm |
| Static Resolution | 2.0 mm |
Data Sheet
Overview
- Full details coming soon
