di-soric OGWSD-25G3-T3 25 x 22 mm Frame light barrier, push-pull NO/NC output, IO-Link

Product Name:
di-soric OGWSD-25G3-T3 25 x 22 mm Frame light barrier, push-pull NO/NC output, IO-Link

Mfr. Part # OGWSD-25G3-T3 Categories , ,

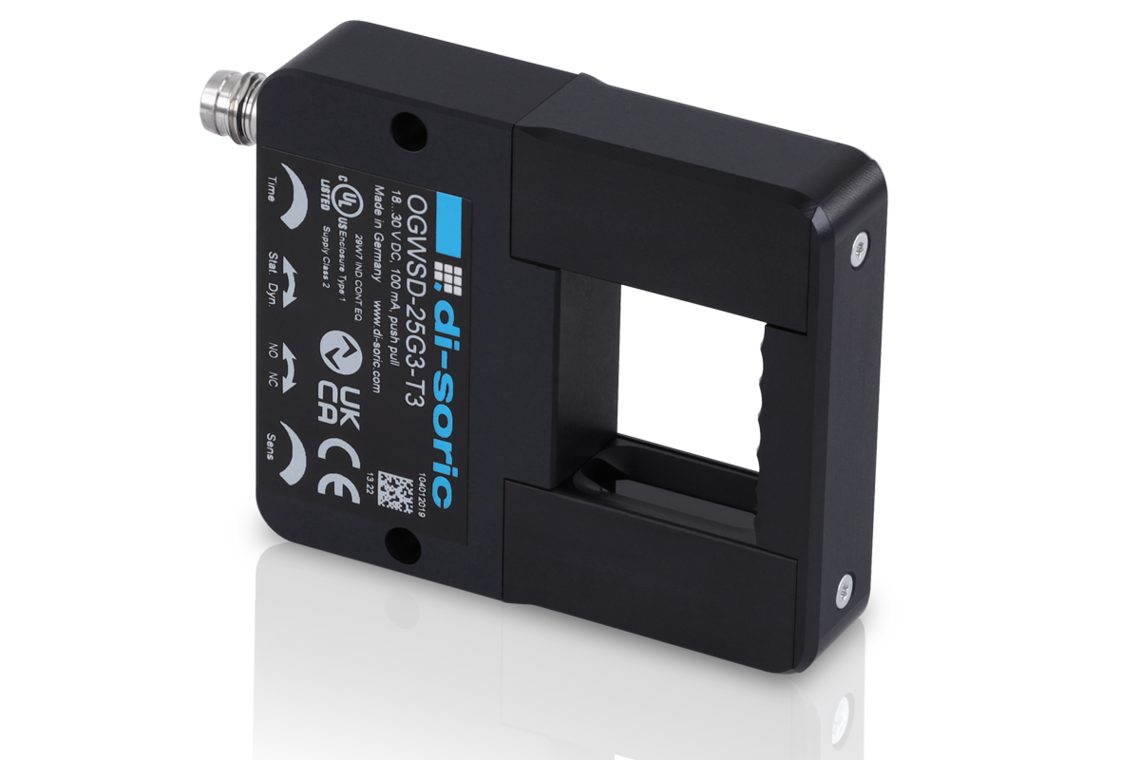

The di-soric OGWSD-25G3-T3 is a 25 x 22 mm Frame / Window light barrier sensor. Very fast, high resolution target detection, IO-Link equipped, static & dynamic switching, M8, 3-pin connection.

  • Output: Push-pull, 100 mA, NO/NC, switchable
  • IO-Link equipped, 4 operating modes for configuration and diagnosis
  • High resolution: 1.0 mm static operation, 0.7 mm dynamic operation
  • Fast response time: 0.05 ms
  • Pulse stretching: 0 … 150 ms adjustable
  • Robust metal frame housing with removable cross bar
  • Optics baffle protected
  • Potentiometer for adjustment
  • Operating principle: dynamic or static
  • Easy installation and hook-up via M8-3 pin connector

Detects most small to medium-sized metallic or non-metallic objects independent of target speed and surface features.

Note: The NEW OGWSD-25G3-T3 replaces and upgrades obsoleted sensor models OGWSD-25-N3K-TSSL and OGWSD-25-P3K-TSSL

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can Ship in 1 – 2 weeks
Quantity Unit Price Ext. Price
1+ US$978.40 US$978.40+
Unit Cost : US$
Extended Cost : US$978.4
Add to Quote

Specifications

Product Type

Sensors
Brand

di-soric
Family

Static and Dynamic Sensing – IO-Link
Part Number

OGWSD-25G3-T3
Model ID Number

213347
Light Source

LED
Housing Material

Aluminum | Black
Weight (g)

86
Switching Output

Push-pull | 100 mA | NO/NC | switchable
Interface

IO-Link
Light Colour

Infrared
Sensitivity Adjustment

Potentiometer
Connection

M8 | 3-pin
IP Rating

IP67
Operating Temperature Range

0 to +60 °C
Part Number (Old)

OGWSD 25 P3K-TSSL | OGWSD 25 N3K-TSSL
Detection Area

25 x 22 mm
Dynamic Resolution

0.7 mm
Static Resolution

1.0 mm
Supply Voltage

18 to 30 VDC

Data Sheet

Overview

  • Full details coming soon
