Flexa ROHRflex-DUO PA6 0269.202.132 / 10269202132

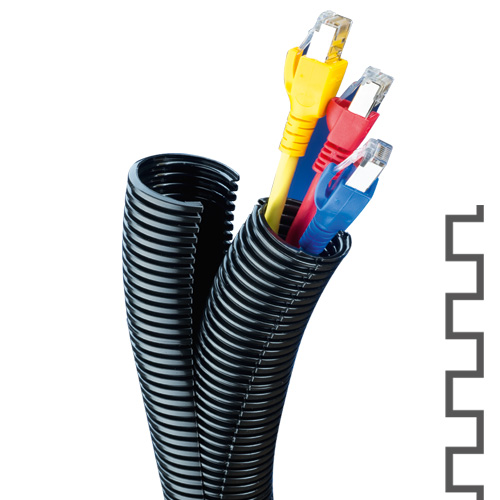

The Flexa ROHRflex-DUO PA6 10269202132 (Old Part Number 0269.202.132) is a 32.0 x 42.5 mm black PA6 plastic two-piece conduit featuring an interlocking, re-closeable, overlapping construction. Specially designed for retrofit and repair applications where it is not possible or practical to disconnect a harness to add a new conduit. Performs well at lower temperatures and is free of silicone, cadmium, and halogen. Good for indoor or outdoor conduit installations, HB (UL 94). Small 5 metre length roll.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$99.70 | US$99.70 |
| 2+ | US$94.72 | US$189.43+ |
Unit Cost : US$
Extended Cost : US$99.7
Specifications
| Package Size | 5m (16.4 ft) per roll |
|---|---|
| Product Type | Plastic Conduit |
| Brand | Flexa |
| Family | ROHRflex-DUO PA6 |
| Part Number | 10269202132 |
| Part Number (Old) | 0269.202.132 |
| Colour | Black |
| OD Outside Diameter (mm) | 42.5 |
| ID Inside Diameter (mm) | 32 |
| Corrugation Profile | Fine |
| Static Bend Radius (mm) | 135 |
| Dynamic Bend Radius (mm) | 410 |
| Weight (kg|m) | 0.2 |
| Material | PA6 Plastic |
| IP Rating | IP40 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Extended Temperature (°C) | 150 |
| Flammability Rating (UL 94) | HB |
| Customs Tariff Number | 3917.32.0050 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113283641 |
Data Sheet
Properties
- good chemical resistance
- free of silicone, cadmium, halogen
- self-extinguishing
- flame retardant
- flexible bending strength
- UV-resistant
Applications
- Retrofit and Repair
- Switch Cabinet Construction
- Insulated Electrical Installations for Application
- Rules Machine and Plant Constructions acc. to DIN EN 60204
- Electrical Installations
Certifications
