4020.101.014 / 14020101014 FLEXA K-EDU 14.0 x 19.0 mm Steel-Braided PVC Protective Sleeve, 50 m Roll

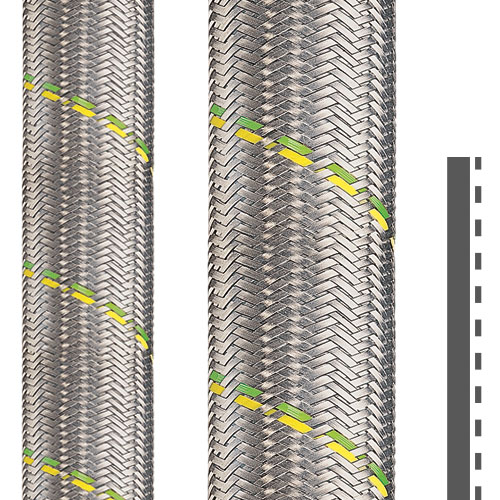

The FLEXA K-EDU 4020.101.014 / 14020101014 is a 14.0 x 19.0 mm steel-braided PVC protective sleeve, supplied as a 50 metre roll. It is built with a K-Schlauch PVC sleeve and an outer galvanized steel wire braid for flexible cable protection where added outer protection is required.
This sleeve is used in automation systems, conveyor systems, packaging and handling equipment, special machine construction, metal cutting machines, automotive applications, shipbuilding, and electrical installations. The steel braid helps protect against abrasion, friction, and light mechanical exposure while the PVC sleeve supports flexible cable routing.
Material:
PVC sleeve with galvanized steel wire braiding
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$1,036.12 | US$1,036.12 |
| 2 | US$984.31 | US$1,968.63 |
| 5 | US$932.51 | US$4,662.54 |
| 10+ | US$880.70 | US$8,807.02+ |
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Plastic Conduit |
| Brand | Flexa |
| Family | K-EDU |
| Part Number | 14020101014 |
| Part Number (Old) | 4020.101.014 |
| Colour | Metallic |
| OD Outside Diameter (mm) | 19 |
| ID Inside Diameter (mm) | 14 |
| Weight (kg|m) | 0.23 |
| Material | PVC | Galv |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -25 |
| High Temperature Rating (°C) | 90 |
| Extended Temperature (°C) | 100 |
| Customs Tariff Number | 3917.32.0050 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113140050 |
Data Sheet
Properties
- flexible
- airtight and liquid tight
- widely resistant to oil and acids
- free of silicone and cadmium
- constancy for raised internal pressure
- shielding as well as protection against hot swarfs
- smooth inside surface
Applications
- Machine and Plant Constructions
- Injection Moulding Machines
- Metal Cutting Machines
- Automotive
- Shipbuilding
- Automation
- Electrical Installations
Certifications
