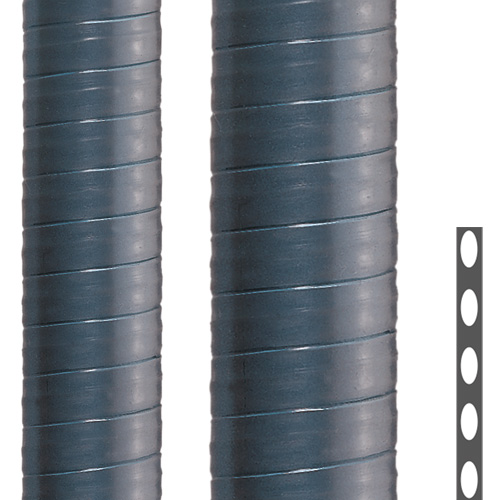

Flexa AIRflex-GRS 0220.101.029 / 10220101029
The Flexa AIRflex-GRS 10220101029 (Old Part Number 0220.101.029) is a 29.0 x 36.0 mm protective PVC plastic conduit with smooth inside and outside surfaces, and a helix of rigid plastic. The smooth inner surface allows for easy feeding of wires and cables while the outer surface makes for simple wiping and cleaning. Good for general applications indoors and outdoors, V2 (UL 94), CSA/UR.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$768.07 | US$768.07 |
| 2 | US$729.67 | US$1,459.33 |
| 5 | US$691.26 | US$3,456.32 |
| 10+ | US$652.86 | US$6,528.60+ |
Unit Cost : US$
Extended Cost : US$768.07
Specifications
| Package Size | 25m (82 ft) per roll |
|---|---|
| Product Type | Plastic Conduit |
| Brand | Flexa |
| Family | AIRflex-GRS |
| Part Number | 10220101029 |
| Part Number (Old) | 0220.101.029 |
| Colour | Grey |
| OD Outside Diameter (mm) | 36 |
| ID Inside Diameter (mm) | 29 |
| Static Bend Radius (mm) | 130 |
| Dynamic Bend Radius (mm) | 325 |
| Weight (kg|m) | 0.4 |
| Material | PVC |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -25 |
| High Temperature Rating (°C) | 70 |
| Extended Temperature (°C) | 100 |
| Customs Tariff Number | 3917.32.0050 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113105189 |
Data Sheet
Properties
- V2 according to UL 94
- flexible
- airtight and liquid tight
- widely resistant to oil and acids
- free of silicone and cadmium
- plain inside and outside, easy drawing-in of cables and cleaning outside surface of conduits
Applications
- Machine and Plant Constructions
- Automotive
- Shipbuilding
- Automation
- Electrical Installations
