Flexa ROHRflex PP 0231.002.023 / 10231002023

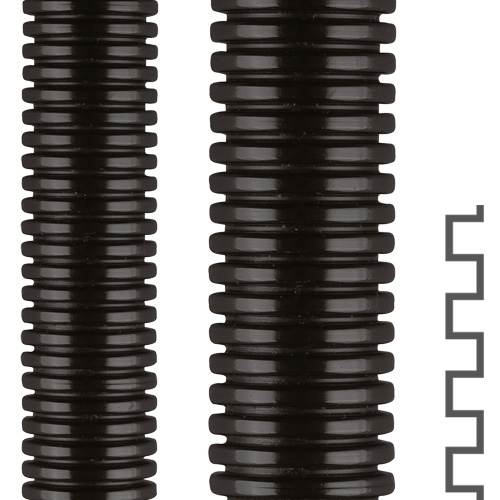

The Flexa ROHRflex PP 10231002023 (Old Part Number 0231.002.023) is a 23.0 x 28.4 mm black polypropylene (PP) all-plastic corrugated tubing with a fine profile. It features high flexibility, good chemical resistance, high UV resistance with reduced fire protection properties. Designed for special projects and OEM applications where only a very basic, economical conduit is required, HB (UL 94).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$280.50 | US$280.50 |
| 2 | US$266.48 | US$532.95 |
| 5 | US$252.45 | US$1,262.25 |
| 10+ | US$238.43 | US$2,384.25+ |
Unit Cost : US$
Extended Cost : US$280.5
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Plastic Conduit |
| Brand | Flexa |
| Family | ROHRflex PP |
| Part Number | 10231002023 |
| Part Number (Old) | 0231.002.023 |
| Colour | Black |
| OD Outside Diameter (mm) | 28.5 |
| ID Inside Diameter (mm) | 23 |
| Corrugation Profile | Fine |
| Static Bend Radius (mm) | 45 |
| Dynamic Bend Radius (mm) | 135 |
| Weight (kg|m) | 0.09 |
| Material | PP Plastic |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -50 |
| High Temperature Rating (°C) | 100 |
| Extended Temperature (°C) | 130 |
| Flammability Rating (UL 94) | HB |
| Customs Tariff Number | 3917.32.0050 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113176394 |
Data Sheet
Properties
- air- and liquid-tight
- resistant against hydrous solutions, acids and alkalis
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- ozon resistant
- flame retardant
- very good UV-resistant
Applications
- Machine and Plant Constructions
- Automotive
- Shipbuilding
- Automation
- Electrical Installations
Certifications
