0461.702.010 / 10461702010 ROHRflex® PA6-CU 10.0 x 14.0 mm corrugated nylon conduit, over-braid of woven round tinned-copper wires, EMC rated

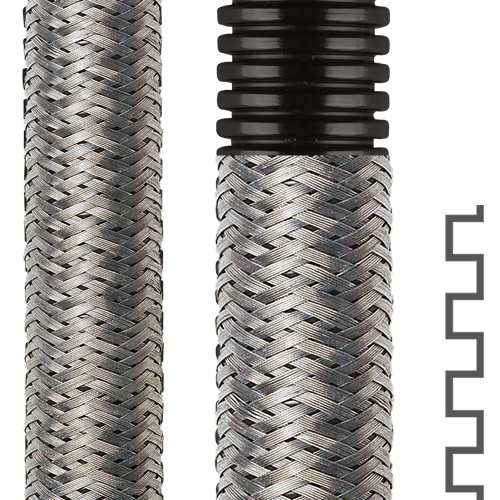

The Flexa ROHRflex PA6-CU 10461702010 (Old Part Number 0461.702.010) is a 10.0 x 14.0 mm specially blended black PA6 plastic conduit, covered with a wire braid consisting of cross woven round tinned-copper wires.
The flexible, flame-retardant, liquidtight construction and wire braiding combine for excellent mechanical, abrasion and EMC protection of wires, cables, pneumatic hoses, and fiber optic bundles.
EMC screening attenuation is provided up to 80dB at up to 30Mhz. with a UL fire rating of HB (UL 94).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 4 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$1,392.22 | US$1,392.22 |
| 2 | US$1,322.61 | US$2,645.22 |
| 5 | US$1,253.00 | US$6,264.99 |
| 10+ | US$1,183.39 | US$11,833.87+ |
Unit Cost : US$
Extended Cost : US$1392.22
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Plastic Conduit |
| Brand | Flexa |
| Family | ROHRflex PA6-CU |
| Part Number | 10461702010 |
| Part Number (Old) | 0461.702.010 |
| Colour | Other |
| OD Outside Diameter (mm) | 13 |
| ID Inside Diameter (mm) | 10 |
| Corrugation Profile | Fine |
| Static Bend Radius (mm) | 20 |
| Dynamic Bend Radius (mm) | 45 |
| Weight (kg|m) | 0.13 |
| Material | PA6 Plastic | CU |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Extended Temperature (°C) | 150 |
| Flammability Rating (UL 94) | HB |
| Customs Tariff Number | 3917.32.0050 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113257949 |
Data Sheet
Properties
- air- and liquid-tight
- oil resistant up to + 80° C
- benzine resistant
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- flame retardant
- screening attenuation up to 80 dB frequency range up to 30 MHz
Applications
- Machine and Plant Constructions
- Automotive
- Shipbuilding
- Automation
- Electrical Installations
- EMC Applications
Certifications
