1236.202.016 / 11236202016 Flexa ROHRflex® PA12+ 16.5 x 21.2 mm Next Generation Multi-layer PA12 plastic corrugated conduit

  • 1236.202.016 / 11236202016 Flexa ROHRflex® PA12+ 16.5 x 21.2 mm Next Generation Multi-layer PA12 plastic corrugated conduit

Product Name:
1236.202.016 / 11236202016 Flexa ROHRflex® PA12+ 16.5 x 21.2 mm Next Generation Multi-layer PA12 plastic corrugated conduit

Flexa Logo
Mfr. Part # 11236202016 Categories , , ,

The Flexa ROHRflex PA12+ 11236202016 (Old Part Number 1236.202.016) is a 16.5 x 21.2 mm Next Generation Multi-layer PA12 plastic corrugated conduit.

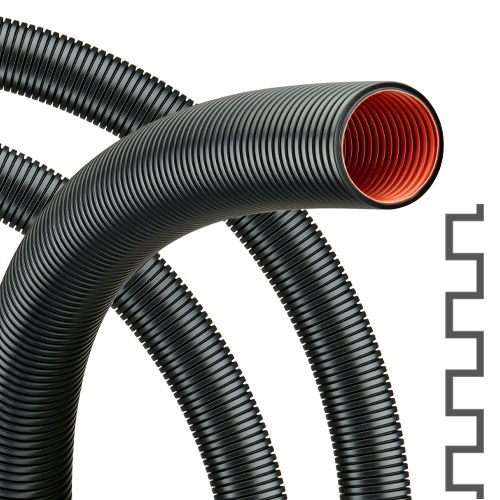

Built with a dual-layer structure—featuring a black outer layer and a bright red inner layer—it delivers exceptional cold-temperature flexibility and heavy-duty wall durability. Its multi-layer design also offers a practical wear-indicator: when the outer black layer abrades, the inner red layer becomes visible, signalling the need for inspection or replacement.

With an HL2 fire protection rating, the PA12+ is ideal for safe and secure wire and cable protection in passenger railway cars, buses, locomotives, subways, trams, and electric vehicle applications.

Suitable for both indoor and outdoor use, it meets NFPA 130 and EN 45545 (HL2) standards—and it’s 100% recyclable.

Combine the Rohrflex® PA12+ conduits with our FLEXAquick® Quick-Connect Conduit Fittings. No tools required – just snap on and go!

In Stock: 1
Stock: 1 can ship immediately
Factory Lead-Time: Can ship in 5 – 7 days
Minimum: 1
Multiples: 1

1 in stock

Quantity Unit Price Ext. Price
1 US$550.64 US$550.64
2 US$523.11 US$1,046.22
5 US$495.58 US$2,477.88
10+ US$468.04 US$4,680.44+
Unit Cost : US$
Extended Cost : US$550.64
Add to Quote

Specifications

Package Size

50m (164 ft) per roll
Product Type

Plastic Conduit
Brand

Flexa
Family

ROHRflex PA12+
Part Number

11236202016
Part Number (Old)

1236.202.016
Colour

Black
OD Outside Diameter (mm)

21.2
ID Inside Diameter (mm)

16.5
Corrugation Profile

Fine
Static Bend Radius (mm)

35
Dynamic Bend Radius (mm)

75
Weight (kg|m)

0.07
Material

PA12 Plastic
IP Rating

IP68
Low Temperature Rating (°C)

-50
High Temperature Rating (°C)

120
Extended Temperature (°C)

150
Flammability Rating (UL 94)

V2
Customs Tariff Number

39173200
Country of Origin

Germany
GTIN / EAN Code

4025113313911

Data Sheet

Properties

  • high alternate bending strength
  • oil and benzine resistant
  • widely resistant to acid and solvents
  • free of silicone, cadmium, halogen
  • highly self-extinguishing
  • flame retardant
  • UV resistant

Applications

  • Railway Industry
  • Machine and Plant Constructions
  • Automotive
  • Shipbuilding
  • Automation
  • Electrical Installations
