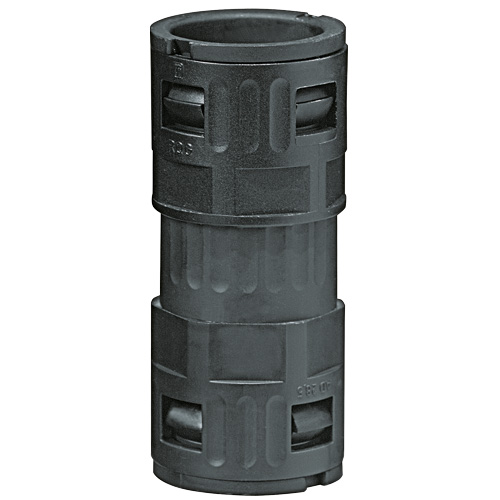

5602.028.228 / 15602028228 RQK-PA 2 x 28.5 mm FLEXAquick® black plastic union fitting for corrugated conduits
The Flexaquick RQK-PA 15602028228 (Old Part Number 5602.028.528) is a 2 x 28.5 mm OD Black plastic union fitting for corrugated conduits.
It features the Flexaquick quick connect system with an integrated lock & release sleeve and built-in IP68 sealing. Installs in seconds for Quick “on” assembly or Quick “off” disassembly. NO tools required!
Use with all fine or coarse corrugation plastic conduits of matching outside diameter (OD).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$14.00 | US$14.00 |
| 5 | US$12.60 | US$63.00 |
| 10 | US$11.20 | US$112.00 |
| 20 | US$10.50 | US$210.00 |
| 50 | US$9.80 | US$490.00 |
| 100+ | US$9.10 | US$910.00+ |
Unit Cost : US$
Extended Cost : US$14
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQK-PA |
| Part Number | 15602028228 |
| Part Number (Old) | 5602.028.228 |
| Colour | Black |
| Body Length D (mm) | 86. 5 |
| Material | PA6 Plastic |
| OD 1 (mm) | 28. 5 |
| OD 2 (mm) | 28. 5 |
| ΦI Inside Diameter (mm) | 23. 5 |
| ΦB1 (mm) | 37. 0 |
| Weight (kg|100) | 3.5 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113212610 |
Data Sheet
Applications
- For Static and Dynamic Applications Indoor and Outdoor of Railway Cars
- Heavy Machine and Plant Construction
- Insulated Electrical Installations
Certifications
