Flexa RQGZ1-P 5020.060.221 / 15020060221

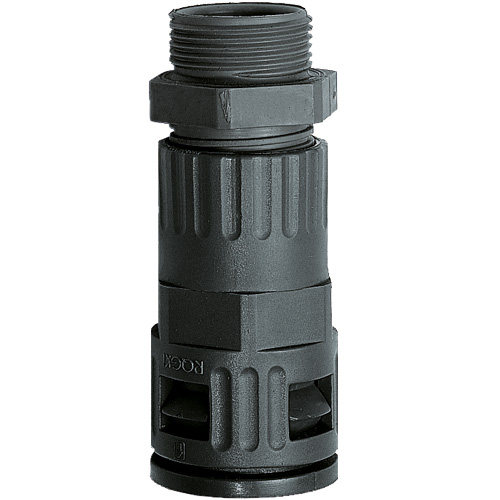

The Flexa RQGZ1-P 15020060221 (Old Part Number 5020.060.221) is described as a straight plastic conduit connector with PG 21 outer thread and integrated cable strain relief. It features the Flexaquick quick connect system with an integrated snap-in and release sleeve and conical sealing.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$18.99 | US$18.99 |
| 5 | US$17.09 | US$85.46 |
| 10 | US$15.19 | US$151.92 |
| 20 | US$14.24 | US$284.85 |
| 50 | US$13.29 | US$664.65 |
| 100+ | US$12.34 | US$1,234.35+ |
Unit Cost : US$
Extended Cost : US$18.99
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQGZ1-P |
| Part Number | 15020060221 |
| Part Number (Old) | 5020.060.221 |
| Colour | Black |
| Thread Type | PG |
| Thread Size | 21 |
| Thread Length C (mm) | 11 |
| Body Length D (mm) | 82 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 28.5 |
| ΦI Inside Diameter (mm) | 18 |
| ΦB Max Outer Diameter (mm) | 37 |
| Weight (kg|100) | 3.4 |
| IP Rating | IP 66 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Gripping Range (mm) | 13.0-18.0 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113173386 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- impact-resistant
- optimal strain relief and sealing of cables at the same time
Applications
- Machine and Plant Constructions
- Automotive
- Automation
- Electrical Installations
Certifications
