Flexa RQGZ1-P 5020.060.211 / 15020060211

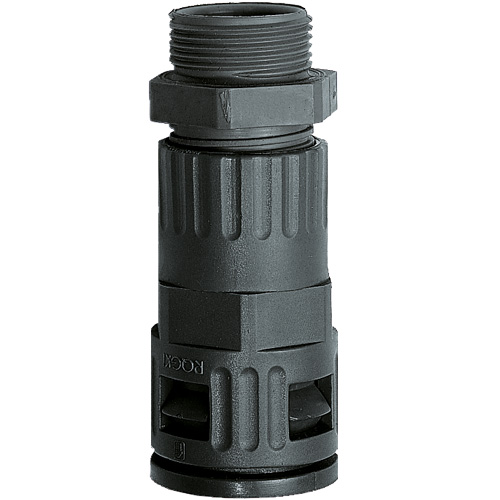

The Flexa RQGZ1-P 15020060211 (Old Part Number 5020.060.211) is described as a straight plastic conduit connector with PG 11 outer thread and integrated cable strain relief. It features the Flexaquick quick connect system with an integrated snap-in and release sleeve and conical sealing.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$14.62 | US$14.62 |
| 5 | US$13.89 | US$69.45 |
| 10 | US$13.16 | US$131.58 |
| 15 | US$12.43 | US$186.41 |
| 20 | US$11.70 | US$233.92 |
| 40 | US$10.97 | US$438.60 |
| 100 | US$10.23 | US$1,023.40 |
| 250+ | US$9.50 | US$2,375.75+ |
Unit Cost : US$
Extended Cost : US$14.62
Specifications
| Package Size | 20 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQGZ1-P |
| Part Number | 15020060211 |
| Part Number (Old) | 5020.060.211 |
| Colour | Black |
| Thread Type | PG |
| Thread Size | 11 |
| Thread Length C (mm) | 8 |
| Body Length D (mm) | 59 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 15.8 |
| ΦI Inside Diameter (mm) | 10 |
| ΦB Max Outer Diameter (mm) | 23 |
| Weight (kg|100) | 1.5 |
| IP Rating | IP 66 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Gripping Range (mm) | 5.0-10.0 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113173355 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- impact-resistant
- optimal strain relief and sealing of cables at the same time
Applications
- Machine and Plant Constructions
- Automotive
- Automation
- Electrical Installations
Certifications
