5109.054.263 / 15109054263 RQGZ1-M M63 x 1.5 FLEXAquick® black straight connector, 32.0 – 42.0 mm grip strain relief, for 54.5 mm OD conduit, IP66 sealing

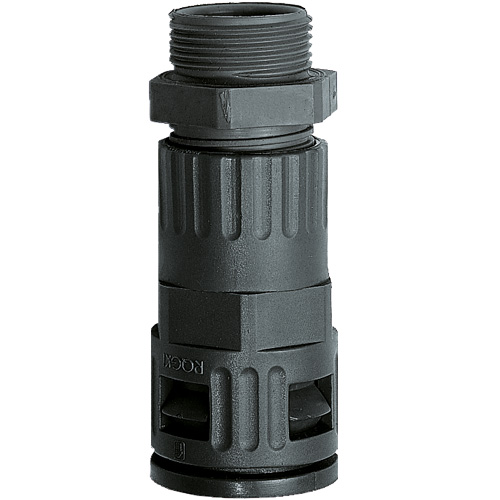

The FLEXAquick® RQGZ1-M 5109.054.263 (Old Part Number 5109.054.263) is a straight black plastic conduit connector with metric M63 x 1.5 outer thread and integrated cable strain relief. It features the FLEXAquick® quick-connect system with an integrated snap-in and release sleeve and built-in sealing.
It is designed for fast, secure, and tool-free connection of ROHRflex® corrugated plastic conduit where reliable conduit termination and cable retention are both required.
This fitting is for 54.5 mm OD conduit and has a cable gripping range of 32.0 – 42.0 mm. It provides a reliable solution for machine building, automation, transportation, e-mobility, and specialty vehicle applications where IP66 sealing is required.
Use the RQGZ1-M fitting with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Choose from over 20 varieties of ROHRflex® corrugated nylon PA6, PA12 and multi-layer conduits.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$59.25 | US$59.25 |
| 5 | US$53.33 | US$266.63 |
| 10 | US$47.40 | US$474.00 |
| 20 | US$44.44 | US$888.75 |
| 50 | US$41.48 | US$2,073.75 |
| 100+ | US$38.51 | US$3,851.25+ |
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQGZ1-M |
| Part Number | 15109054263 |
| Part Number (Old) | 5109.054.263 |
| Colour | Black |
| Thread Type | Metric |
| Thread Size | M63 x 1.5 |
| Thread Length C (mm) | 12 |
| Body Length D (mm) | 145 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 54.5 |
| ΦI Inside Diameter (mm) | 44 |
| ΦB Max Outer Diameter (mm) | 68 |
| Weight (kg|100) | 16.3 |
| IP Rating | IP 66 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Gripping Range (mm) | 32.0-42.0 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113198051 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- impact-resistant
- optimal strain relief and sealing of cables at the same time
Applications
- Machine and Plant Constructions
- Automotive
- Automation
- Electrical Installations
