Flexa RQGZ1-M 5109.042.250 / 15109042250

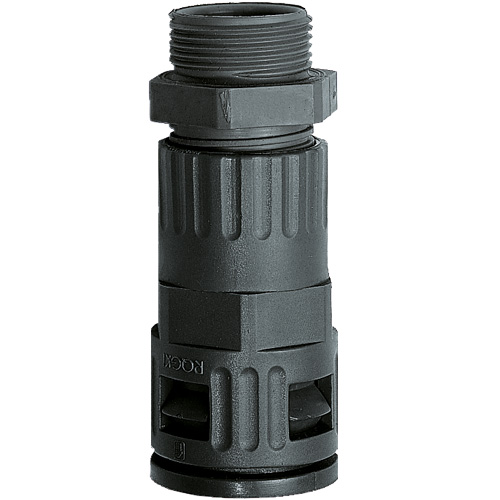

The Flexa RQGZ1-M 15109042250 (Old Part Number 5109.042.250) is described as a straight plastic conduit connector with metric M50 x 1.5 outer thread and integrated cable strain relief. It features the Flexaquick quick connect system with an integrated snap-in and release sleeve and conical sealing.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$45.06 | US$45.06 |
| 5 | US$40.55 | US$202.77 |
| 10 | US$36.05 | US$360.48 |
| 20 | US$33.80 | US$675.90 |
| 50 | US$31.54 | US$1,577.10 |
| 100+ | US$29.29 | US$2,928.90+ |
Unit Cost : US$
Extended Cost : US$45.06
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQGZ1-M |
| Part Number | 15109042250 |
| Part Number (Old) | 5109.042.250 |
| Colour | Black |
| Thread Type | Metric |
| Thread Size | M50 x 1.5 |
| Thread Length C (mm) | 12 |
| Body Length D (mm) | 141 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 42.5 |
| ΦI Inside Diameter (mm) | 32 |
| ΦB Max Outer Diameter (mm) | 58 |
| Weight (kg|100) | 11.2 |
| IP Rating | IP 66 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Gripping Range (mm) | 27.0-35.0 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113198044 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- impact-resistant
- optimal strain relief and sealing of cables at the same time
Applications
- Machine and Plant Constructions
- Automotive
- Automation
- Electrical Installations
Certifications
