Flexa RQGZ1-M 5109.015.020 / 15109015020

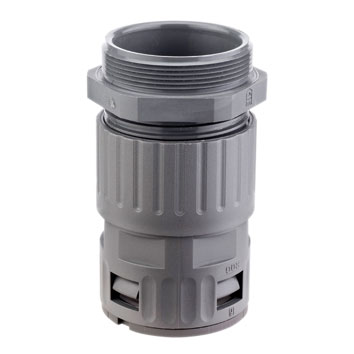

The Flexa RQGZ1-M 15109015020 (Old Part Number 5109.015.020) is described as a straight plastic conduit connector with metric M20 x 1.5 outer thread and integrated cable strain relief. It features the Flexaquick quick connect system with an integrated snap-in and release sleeve and conical sealing.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$14.43 | US$14.43 |
| 5 | US$13.71 | US$68.54 |
| 10 | US$12.99 | US$129.87 |
| 15 | US$12.27 | US$183.98 |
| 20 | US$11.54 | US$230.88 |
| 40 | US$10.82 | US$432.90 |
| 100 | US$10.10 | US$1,010.10 |
| 250+ | US$9.38 | US$2,344.88+ |
Unit Cost : US$
Extended Cost : US$14.43
Specifications
| Package Size | 20 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQGZ1-M |
| Part Number | 15109015020 |
| Part Number (Old) | 5109.015.020 |
| Colour | Grey |
| Thread Type | Metric |
| Thread Size | M20 x 1.5 |
| Thread Length C (mm) | 8 |
| Body Length D (mm) | 59 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 15.8 |
| ΦI Inside Diameter (mm) | 12 |
| ΦB Max Outer Diameter (mm) | 23 |
| Weight (kg|100) | 1.5 |
| IP Rating | IP 66 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Gripping Range (mm) | 8.0-11.0 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113197924 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- impact-resistant
- optimal strain relief and sealing of cables at the same time
Applications
- Machine and Plant Constructions
- Automotive
- Automation
- Electrical Installations
Certifications
