5020.531.220 / 15020531220 RQGZ4-M M20 x 1.5 mm FLEXAquick® black straight long thread connector, 8 – 13 mm strain relief, for 15.8 mm OD conduit, IP68

Product Name:
5020.531.220 / 15020531220 RQGZ4-M M20 x 1.5 mm FLEXAquick® black straight long thread connector, 8 – 13 mm strain relief, for 15.8 mm OD conduit, IP68

Flexa Logo
Mfr. Part # 15020531220 Categories , , ,

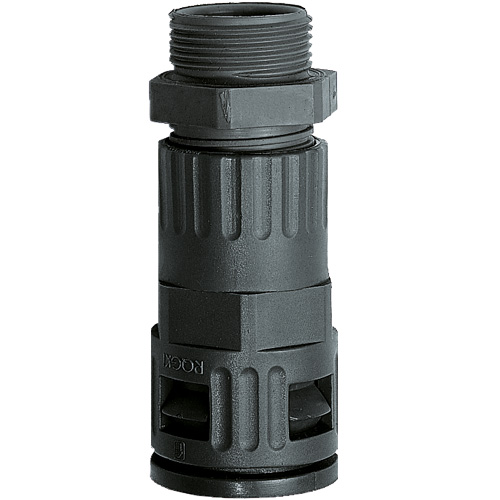

The Flexa RQGZ4-M 15020531220 (Old Part Number 5020.531.220) is a straight Black plastic conduit connector with metric M20 x 1.5 mm outer thread and integrated cable strain relief all-in-one.

This fitting has a special extended thread length of 15.0 mm.

The two piece conduit fitting has a cable gripping range of 8.0 – 13.0 mm.

It features the Flexaquick quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

Installs in seconds for “Quick connect on” fitting and conduit assembly or “Quick disconnect off” fitting and conduit disassembly. NO tools required!

Use the RQGZ4-M with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Find conduit solutions from over 20 varieties of ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.





In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 4 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$26.48 US$26.48
5 US$25.16 US$125.78
10 US$23.83 US$238.32
15 US$22.51 US$337.62
20 US$21.18 US$423.68
40 US$19.86 US$794.40
100 US$18.54 US$1,853.60
250+ US$17.21 US$4,303.00+
Unit Cost : US$
Extended Cost : US$26.48
Add to Quote

Specifications

Package Size

20 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQGZ-M
Part Number

15020531220
Part Number (Old)

5020.531.220
Colour

Black
Thread Type

Metric
Thread Size

M20 x 1.5
Thread Length C (mm)

15. 0
Body Length D (mm)

66
Material

PA6 Plastic
OD Outside Diameter (mm)

15.8
ΦI Inside Diameter (mm)

12
ΦB Max Outer Diameter (mm)

23
Weight (kg|100)

1.5
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Gripping Range (mm)

8.0-13.0
Customs Tariff Number

3917.40.0090
Country of Origin

Germany

Data Sheet

Properties

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • impact-resistant
  • optimal strain relief and sealing of cables at the same time

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations
