Flexa RQLG1-P 5515.028.221 / 15515028221

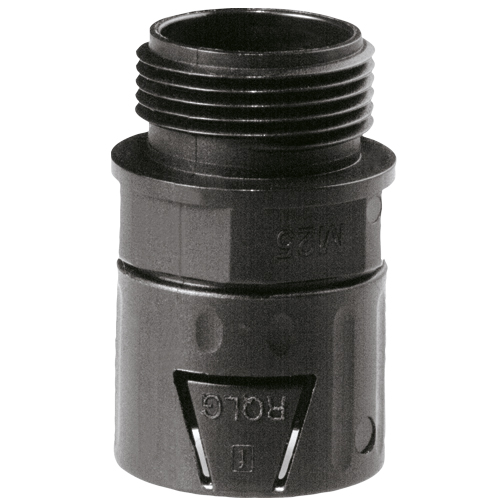

The Flexa RQLG1-P 15515028221 (Old Part Number 5515.028.221) is described as a straight plastic conduit connector with PG 21 outer thread. It features the Flexaquick quick connect system with an integrated snap-in sleeve with conical sealing.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 4 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$5.59 | US$5.59 |
| 5 | US$5.42 | US$27.11 |
| 10 | US$5.31 | US$53.11 |
| 15 | US$5.03 | US$75.47 |
| 20 | US$4.75 | US$95.03 |
| 25 | US$4.47 | US$111.80 |
| 50 | US$4.19 | US$209.63 |
| 100 | US$3.91 | US$391.30 |
| 250+ | US$3.63 | US$908.38+ |
Unit Cost : US$
Extended Cost : US$5.59
Specifications
| Package Size | 25 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQLG1-P |
| Part Number | 15515028221 |
| Part Number (Old) | 5515.028.221 |
| Colour | Black |
| Thread Type | PG |
| Thread Size | 21 |
| Thread Length C (mm) | 15 |
| Body Length D (mm) | 49 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 28.5 |
| ΦI Inside Diameter (mm) | 18.8 |
| ΦB Max Outer Diameter (mm) | 36 |
| Weight (kg|100) | 1.7 |
| IP Rating | IP 65 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113210579 |
Data Sheet
Properties
- resistant against oil and benzine
- highly resistant to acids and solvents
- free of silicone, cadmium, halogen
Applications
- Machine and Plant Constructions
- Automotive
- Automation
- Electrical Installations
Certifications
