Flexa RQW-P 5020.028.211 / 15020028211 PG11 black 90° elbow connector for 15.8 mm OD conduit, IP68 sealing

Product Name:
Flexa RQW-P 5020.028.211 / 15020028211 PG11 black 90° elbow connector for 15.8 mm OD conduit, IP68 sealing

Flexa Logo
Mfr. Part # 15020028211 Categories , , ,

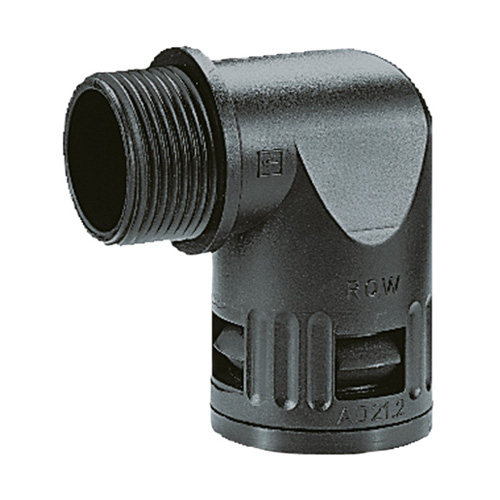

The Flexa RQW-P 15020028211 (Old Part Number 5020.028.211) is a Black plastic 90° elbow conduit connector with European PG 11 outer thread.

It features the Flexaquick quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

This conduit connector installs in seconds for “Quick connect on” fitting and conduit assembly or “Quick disconnect off” fitting and conduit disassembly. NO tools required!

Use the RQW-P PG11 thread 90° elbow fitting with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Peruse the many ROHRflex multi-purpose and robotic grade corrugated nylon conduits.

In Stock: 122
Stock: 122 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1

122 in stock

Quantity Unit Price Ext. Price
1 CAD$10.25 CAD$10.25
5 CAD$9.94 CAD$49.71
10 CAD$9.74 CAD$97.38
15 CAD$9.23 CAD$138.38
25 CAD$8.71 CAD$217.81
50 CAD$8.20 CAD$410.00
100 CAD$7.69 CAD$768.75
250 CAD$7.18 CAD$1,793.75
500+ CAD$6.66 CAD$3,331.25+
Unit Cost : CAD$
Extended Cost : CAD$10.25
Add to Quote

Specifications

Package Size

50 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQW-P
Part Number

15020028211
Part Number (Old)

5020.028.211
Colour

Black
Thread Type

PG
Thread Size

11
Thread Length C (mm)

10
Body Length D (mm)

42
Body Length E (mm)

37.5
Material

PA6 Plastic
OD Outside Diameter (mm)

15.8
ΦI Inside Diameter (mm)

14.5
ΦB Max Outer Diameter (mm)

24.5
Weight (kg|100)

1
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113147561

Data Sheet

Properties

  • resistant against oil and benzine
  • highly resistant to acids and solvents
  • free of silicone, cadmium, halogen

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations

Certifications
