5103.034.032 / 15103034032 RQB90-M M32 x 1.5 mm Metric FLEXAquick® Grey 90 degree bend elbow connector for 34.5 mm OD conduit, IP68 sealing

Product Name:
5103.034.032 / 15103034032 RQB90-M M32 x 1.5 mm Metric FLEXAquick® Grey 90 degree bend elbow connector for 34.5 mm OD conduit, IP68 sealing

Flexa Logo
Mfr. Part # 15103034032 Categories , , ,

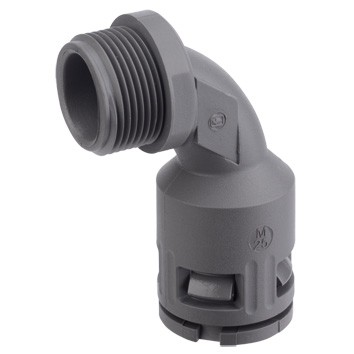

The Flexaquick® RQB90-M 15103034032 (Old Part Number 5103.034.032) is a Grey plastic 90° bend elbow conduit connector with metric M32 x 1.5 mm outer thread.

It features the Flexaquick® quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

Installs in seconds for “Quick-connect on” fitting assembly or “Quick-disconnect off” fitting disassembly. NO tools required!

Use the RQB90-M with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of ROHRflex® corrugated nylon PA6, PA12 and multi-layer conduits.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$25.95 US$25.95
5 US$23.36 US$116.78
10 US$20.76 US$207.60
20 US$19.46 US$389.25
50 US$18.17 US$908.25
100+ US$16.87 US$1,686.75+
Unit Cost : US$
Extended Cost : US$25.95
Add to Quote

Specifications

Package Size

10 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQB90-M
Part Number

15103034032
Part Number (Old)

5103.034.032
Colour

Grey
Thread Type

Metric
Thread Size

M32 x 1.5
Thread Length C (mm)

14
Body Length D (mm)

100.5
Body Length E (mm)

74
Material

PA6 Plastic
OD Outside Diameter (mm)

34.5
ΦI Inside Diameter (mm)

23
ΦB Max Outer Diameter (mm)

44
Weight (kg|100)

5
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113191809

Data Sheet

Properties

  • resistant against oil and benzine
  • highly resistant to acids and solvents
  • free of silicone, cadmium, halogen

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations

Certifications
