5103.028.032 / 15103028032 RQB90-M M32 x 1.5 mm Metric FLEXAquick® Grey 90 degree bend elbow connector for 28.5 mm OD conduit, IP68 sealing

Product Name:
5103.028.032 / 15103028032 RQB90-M M32 x 1.5 mm Metric FLEXAquick® Grey 90 degree bend elbow connector for 28.5 mm OD conduit, IP68 sealing

Flexa Logo
Mfr. Part # 15103028032 Categories , , ,

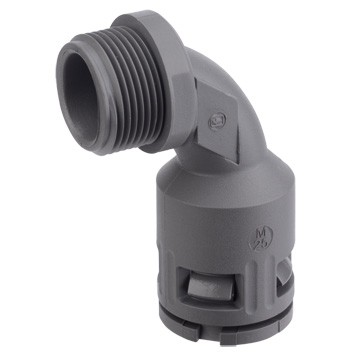

The Flexaquick® RQB90-M 15103028032 (Old Part Number 5103.028.032) is a Grey plastic 90° bend elbow conduit connector with metric M32 x 1.5 mm outer thread.

It features the Flexaquick® quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

Installs in seconds for “Quick-connect on” fitting assembly or “Quick-disconnect off” fitting disassembly. NO tools required!

Use the RQB90-M with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of ROHRflex® corrugated nylon PA6, PA12 and multi-layer conduits.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$17.81 US$17.81
5 US$17.28 US$86.38
10 US$16.92 US$169.20
15 US$16.03 US$240.44
20 US$15.14 US$302.77
25 US$14.25 US$356.20
50 US$13.36 US$667.88
100 US$12.47 US$1,246.70
250+ US$11.58 US$2,894.13+
Unit Cost : US$
Extended Cost : US$17.81
Add to Quote

Specifications

Package Size

25 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQB90-M
Part Number

15103028032
Part Number (Old)

5103.028.032
Colour

Grey
Thread Type

Metric
Thread Size

M32 x 1.5
Thread Length C (mm)

14
Body Length D (mm)

85
Body Length E (mm)

64
Material

PA6 Plastic
OD Outside Diameter (mm)

28.5
ΦI Inside Diameter (mm)

20
ΦB Max Outer Diameter (mm)

37
Weight (kg|100)

3.4
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113191793

Data Sheet

Properties

  • resistant against oil and benzine
  • highly resistant to acids and solvents
  • free of silicone, cadmium, halogen

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations
